430144 Water Motor Drain Pump Fisher & Paykel Washing Machine - 420324P, FP005D

430144 Water Motor Drain Pump Fisher & Paykel Washing Machine - 420324P, FP005D

Regular price $107.95 AUD
Regular price Sale price $107.95 AUD
Sale Sold out

430144 Water Motor Drain Pump Fisher & Paykel Washing Machine - 420324P, FP005D

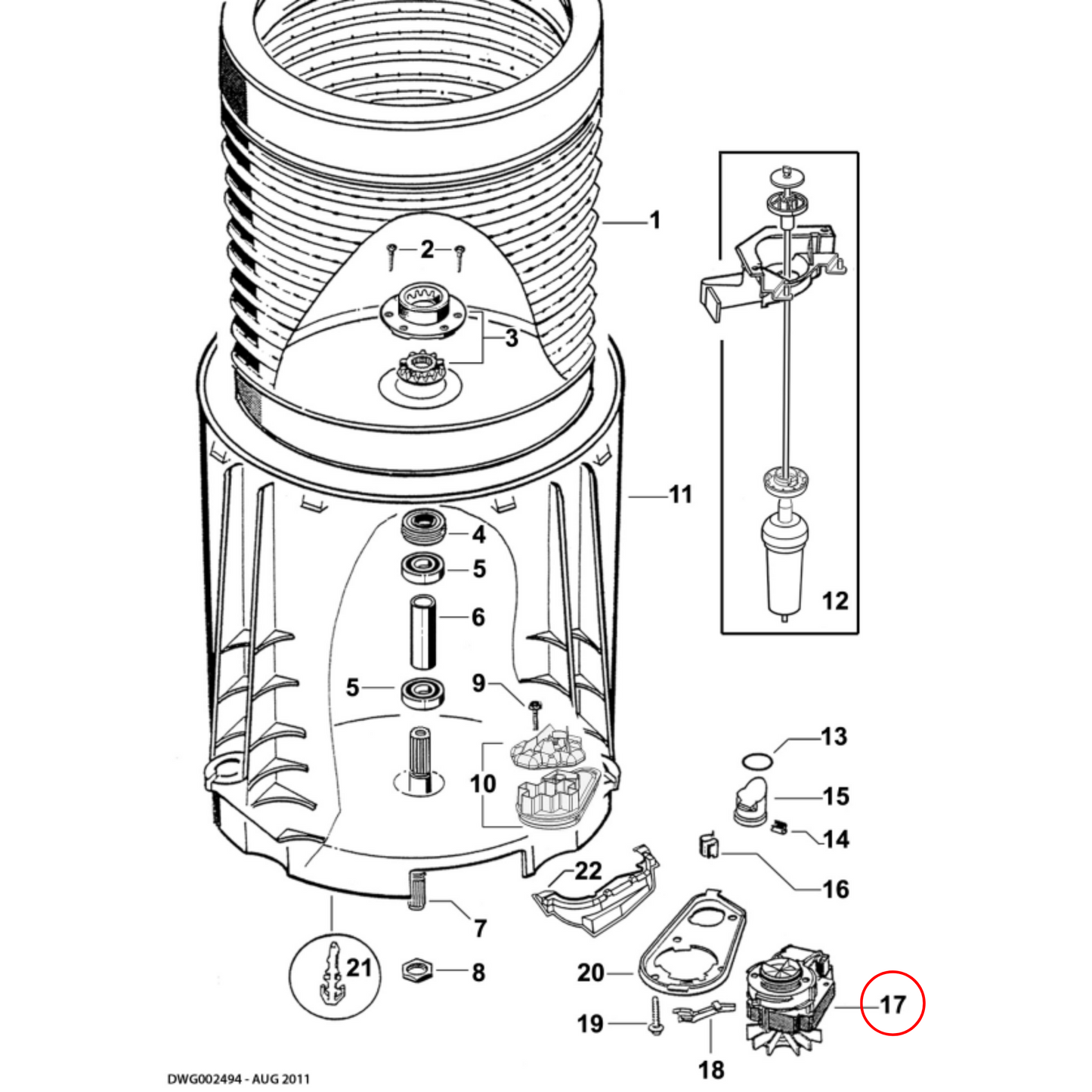

430144 supersedes 420324P and is number 17 on the diagram (2nd last photo). The diagram is from model WA70T60FW1 (92158-A)

Replaces genuine & other Part Nos. FP001, SM00-246NR, SD200, FP420324P, 420324P, FP426956P, FP426956, 426956, 426956P. Replaces FP426719P, 426719P, 1030207WS. Replaces older original Selni pumps made in France & marked  SM00216N, or SM00-346N, SD200. Also known as FP003, FP004 or FP005 by some suppliers.

Fisher & Paykel compatible electric pump to suit most early model washing machines except the most recent models.
This part does not suit models starting with WL.

6.4mm spade terminals.

Models this part suits:

MW500, MW501, MW503, MW508, MW059, MW511, MW512, MW513, MW600, MW601, MW603, MW608, MW612, MW613, MW700

Smart drive models: GW500, GW501, GW051, GW503, GW508, GW509, GW512, GW600, GW600B, GW601, GW603, GW608, GW609, GW611, GW612, GW650A, GW700B, GW701, GW711, GW712, GW812, # IW509, IW511, IW512, IW609, IW711, IW712, IW811, IW812

Fabric Smart: WA70T60FW1 (92158-A), WA65T60GW1, WA75T65GW1

Suits most early F&P washing machines including Smartdrive, Intuitive, Excellence, Pride AW, GW, LW, MW series from GW500 through to GW712 & also WA55T56G, WA65T60G, WA70T60F, WA70T60G, WA75T65G, WA80T65F, WA80T65G models. Not suitable for Gentle Annie, GW52U models or for models starting with WL.

NOTE: The pump can be responsible for Phase 5 & later Smartdrive & Intuitive models GW509, 609, 709, IW709, MW059, 079 & later having no power. Worn or damaged pumps can cause motor control module damage, so it is wise to change it if it rattles, screeches, or fails to start intermittantly.

NOTE: Long grey water hoses can cause undue stress on Fisher & Paykel pumps causing them to draw higher current than normal. This in turn can cause the electronic module to fault with an error code and beeping. If using a grey water hose it is advisable to use a siphon break, or pump into a container that the grey water can run out of under gravity.

NOTE: This part will NOT suits Aquasmart models, use part number 479627

Give us a call on 0863907132 if you are not sure about this part.
