0136200083 Simpson Top Load Washing Machine Inlet Valve Single Straight 180 Degree 10mm 5 Liters/min - W025DW

0136200083 Simpson Top Load Washing Machine Inlet Valve Single Straight 180 Degree 10mm 5 Liters/min - W025DW

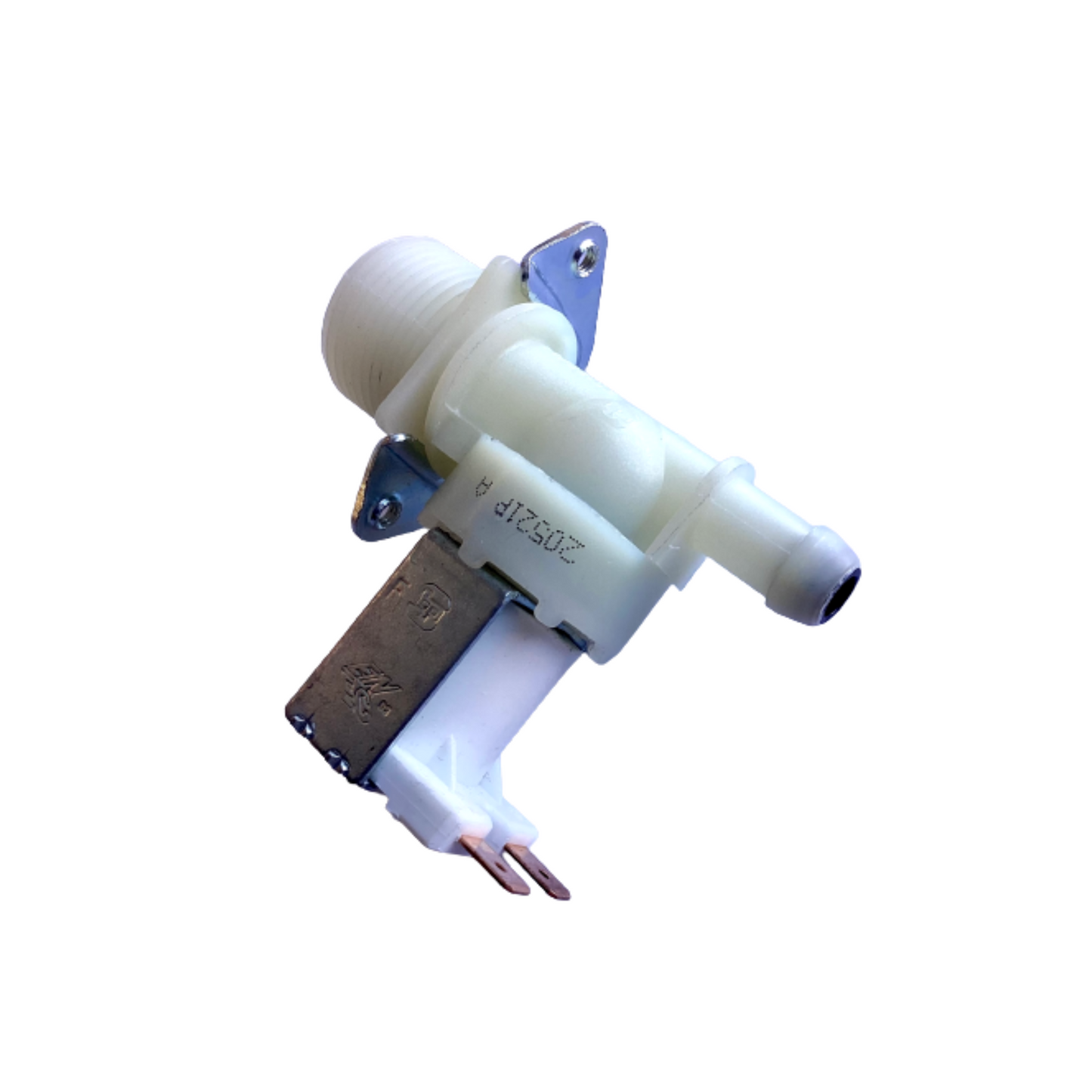

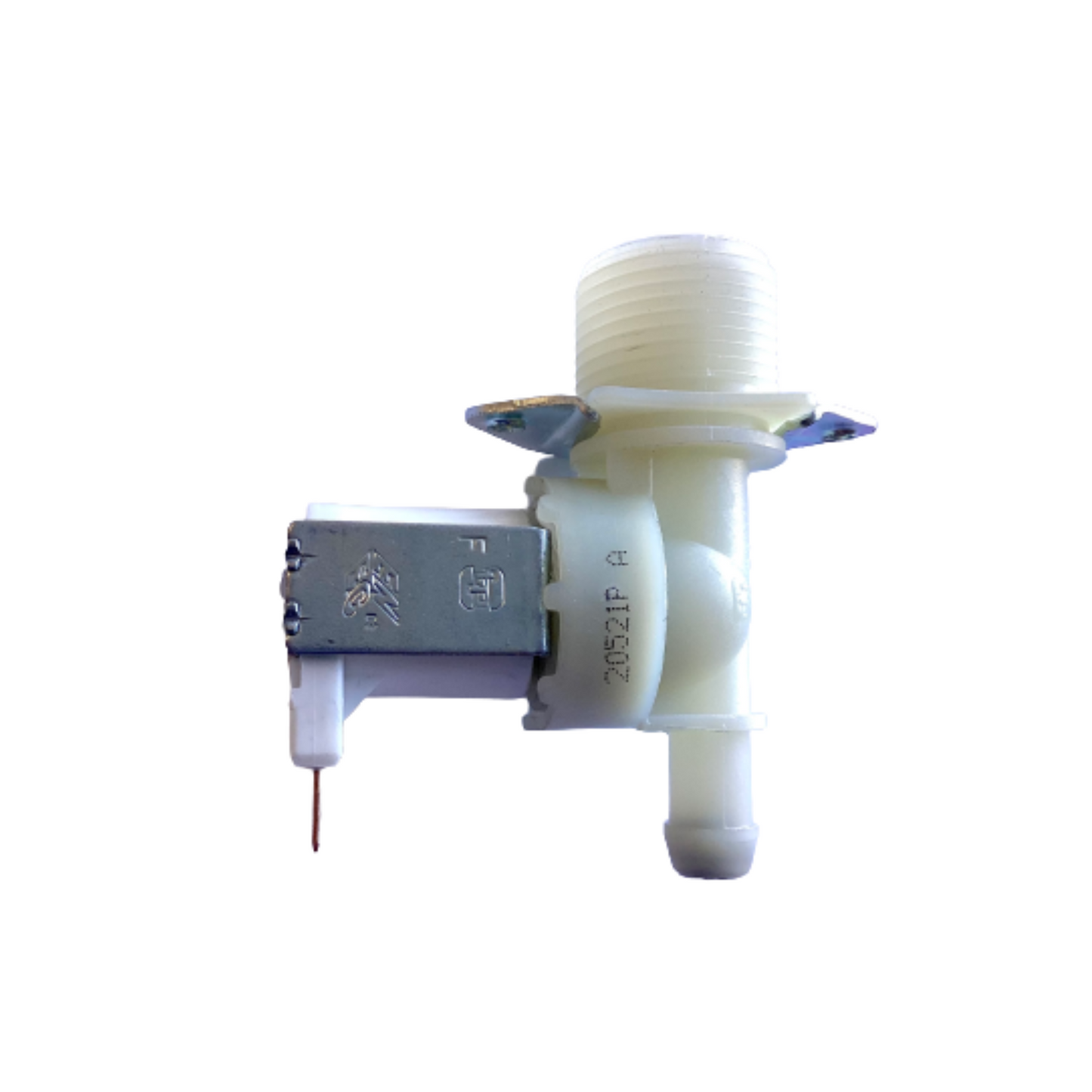

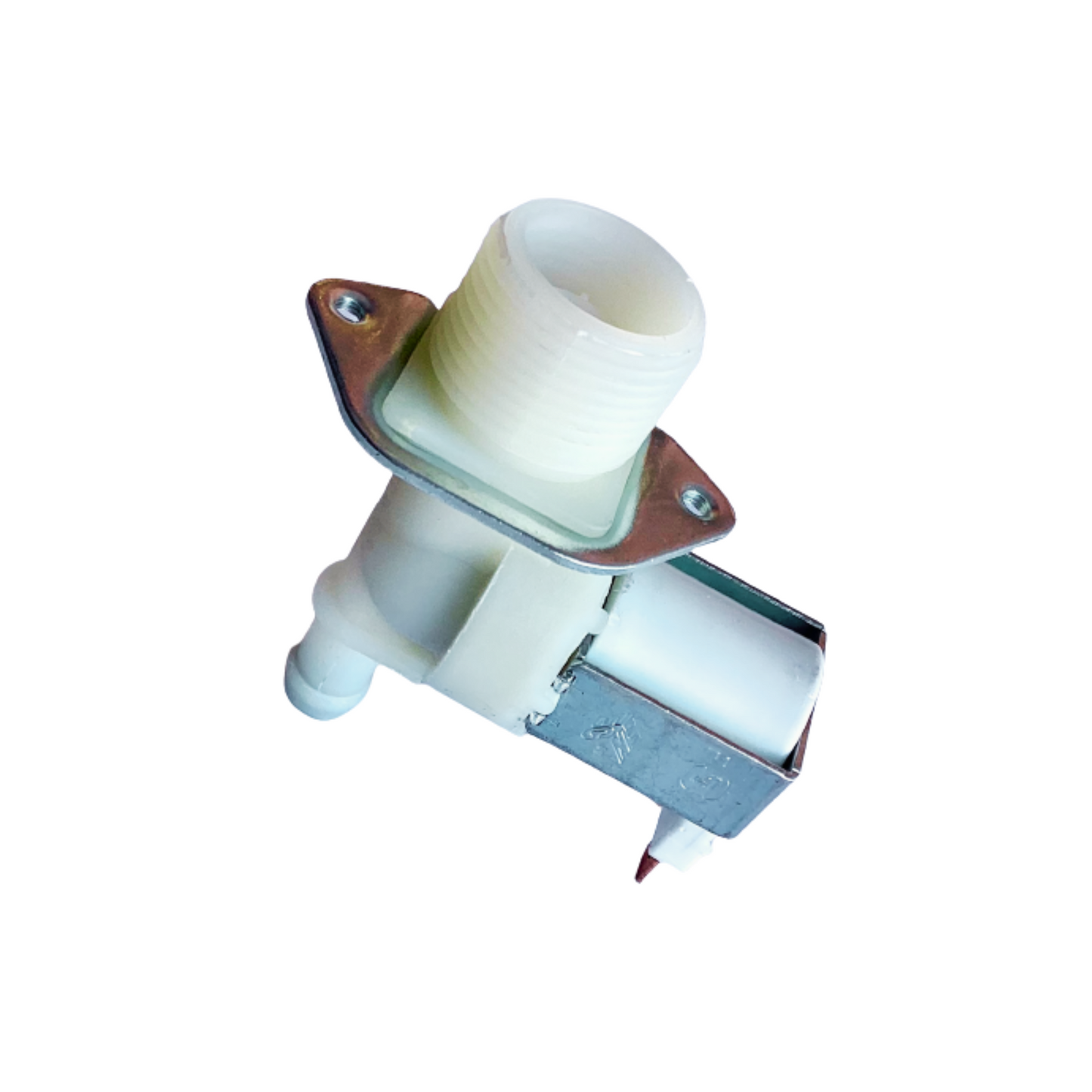

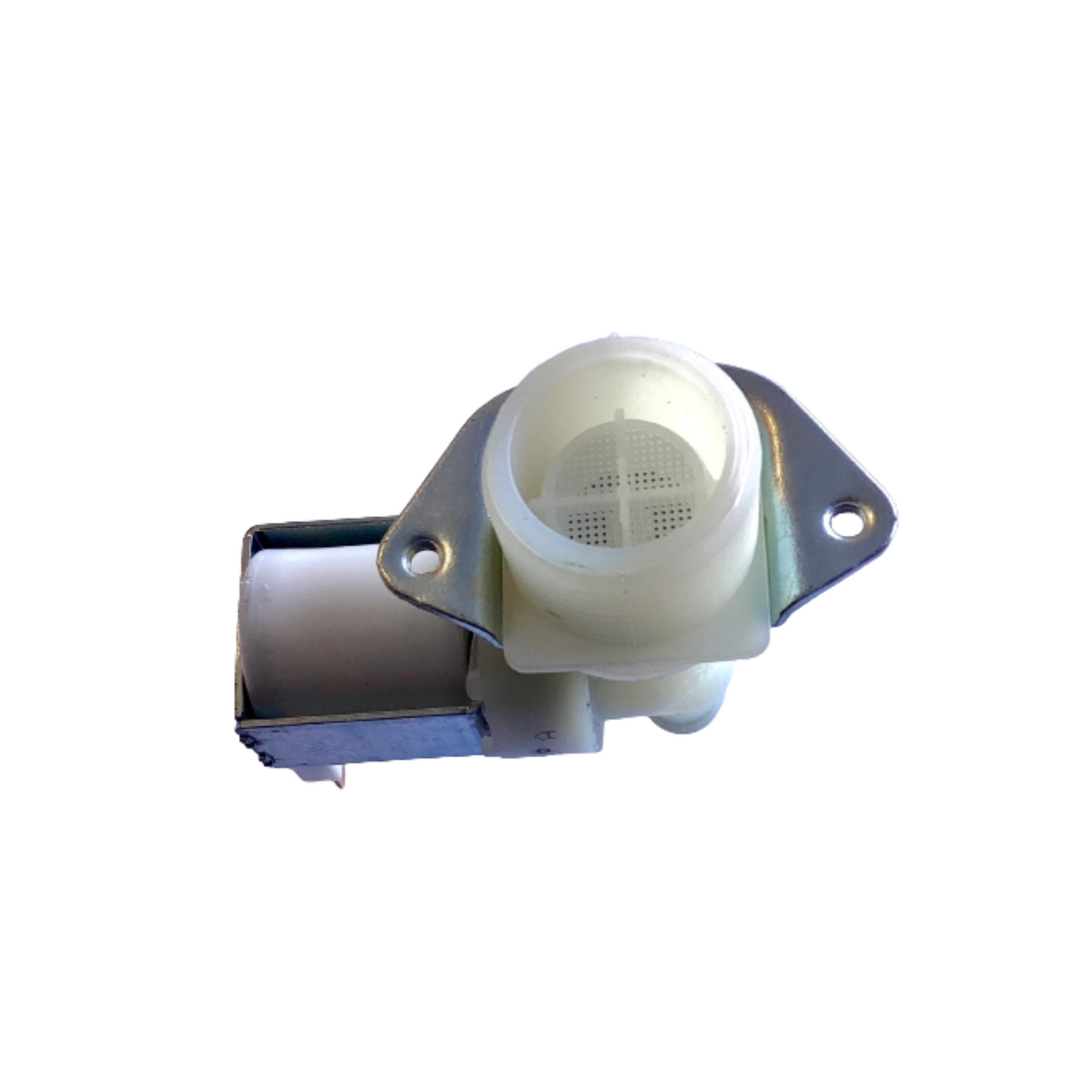

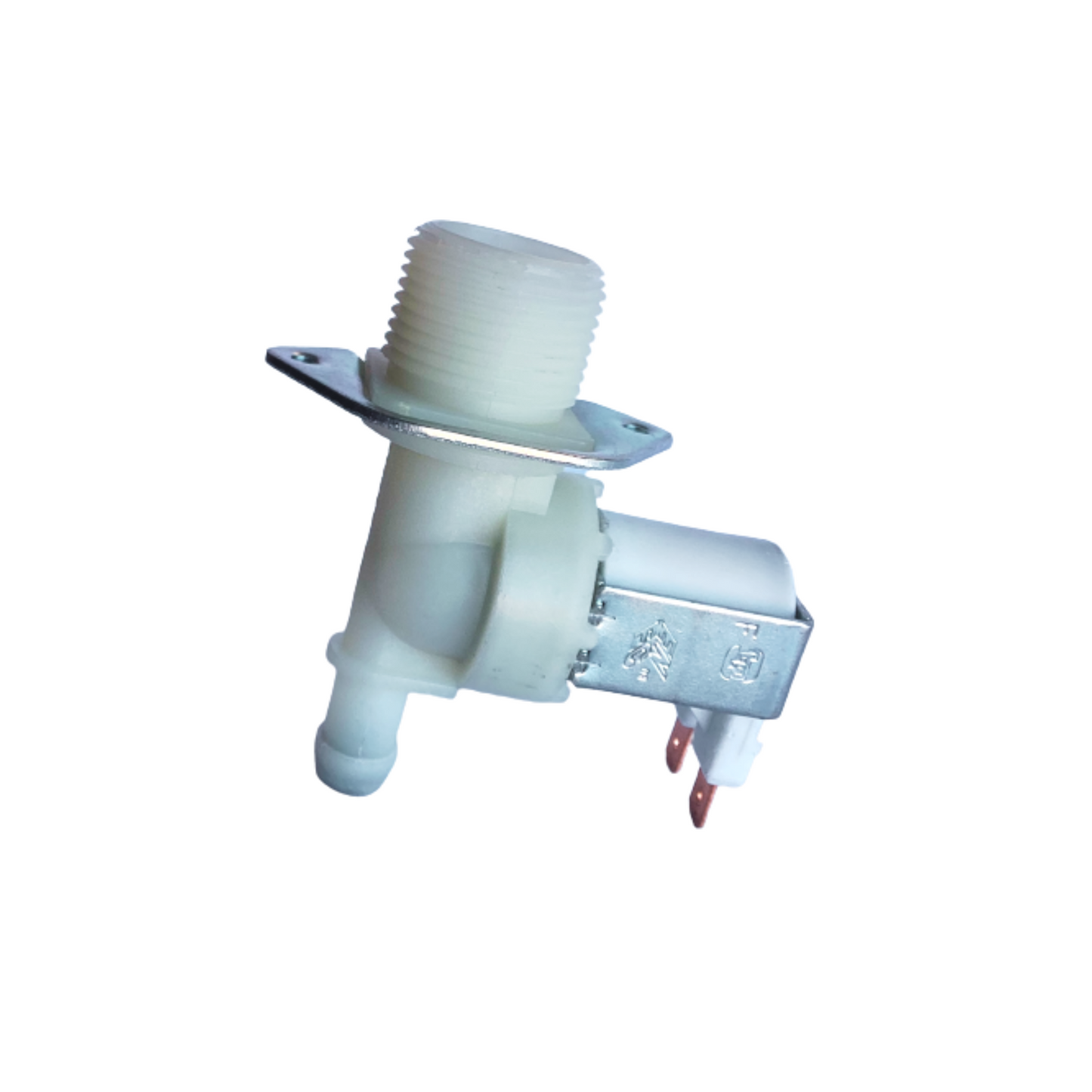

Universal 10mm Straight Single Water Inlet Solenoid Valve.

Equivalent to Part Nos. 0136200083, V019A, W025.

240Volts AC.

Outlet suits 10mm hose. Inlet is 3/4" BSP standard tap thread (actual thread diameter 1").

This solenoid valve is a suitable replacement for some late model washing machines including Hoover Electra 530 front loader & Simpson Enduro series.

The coil can be rotated to suit some machines.

Includes removable mounting bracket.

This valve can be used to replace other valves with the same configuration & specifications even if the solenoid coil looks slightly different.

Models this part suits:

36S514E*01, 36S514E*04, 36S513E*01, 36S513E*04, 36S512E*04, 36S512E*02, 36S512E*01, 36S511E*01, 36S504E*04, 36S504E*01, 36S503E*04, 36S502E*04, 36S502E*02, 36S502E*01, 36S501E*04, 36S501E*01, 22S701E*07, 22S702E*07, 22S703E*07, 22S704E*07, 22S711E*07, 22S712E*07, 22S713E*07, 22S714E*07, 22S701E*06, 22S703E*05, 22S703E*06, 22S704E*05, 22S711E*06, 22S713E*05, 22S713E*06, 22S714E*05, and possibly more.

Give us a call on 0863907132 if you are not sure about this part.
