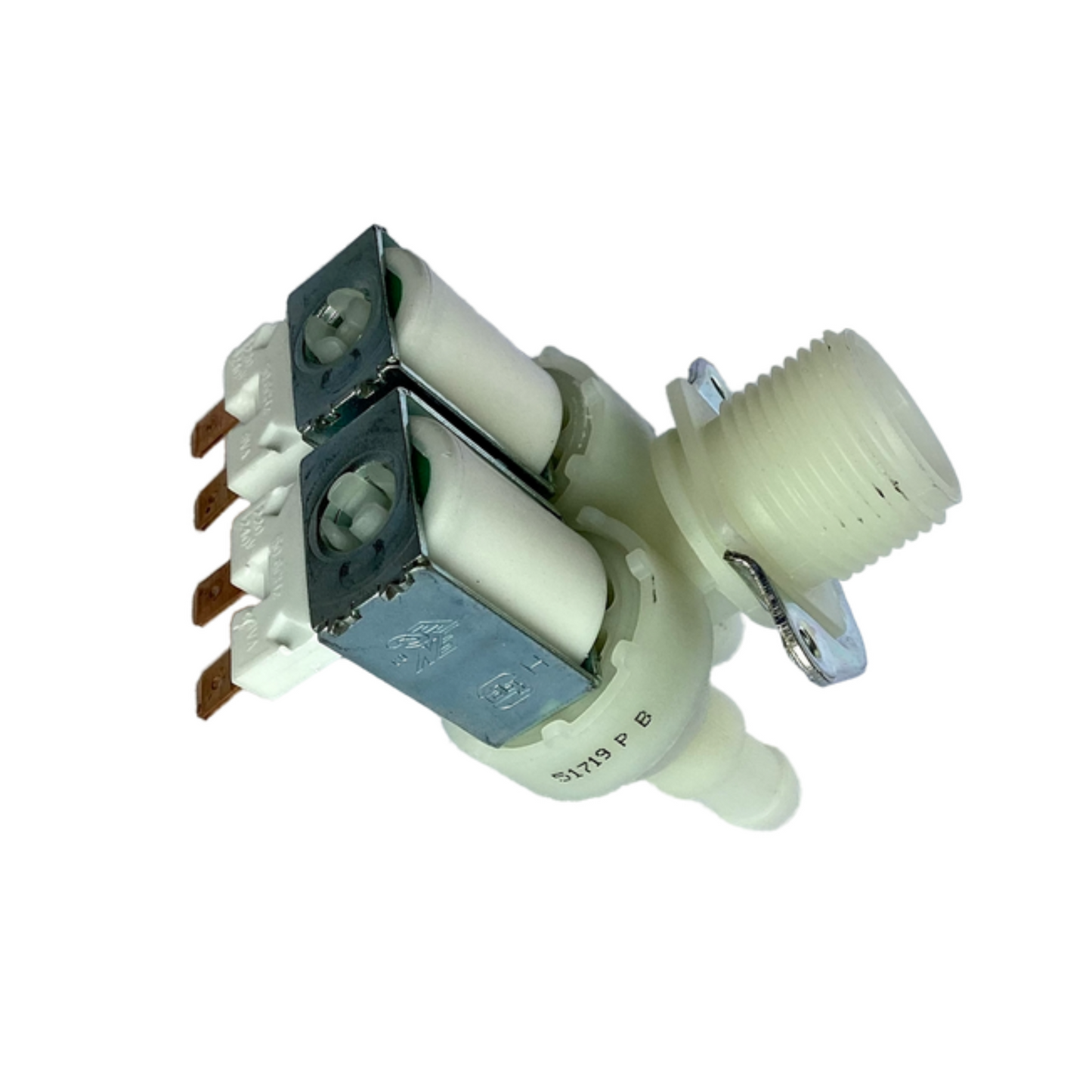

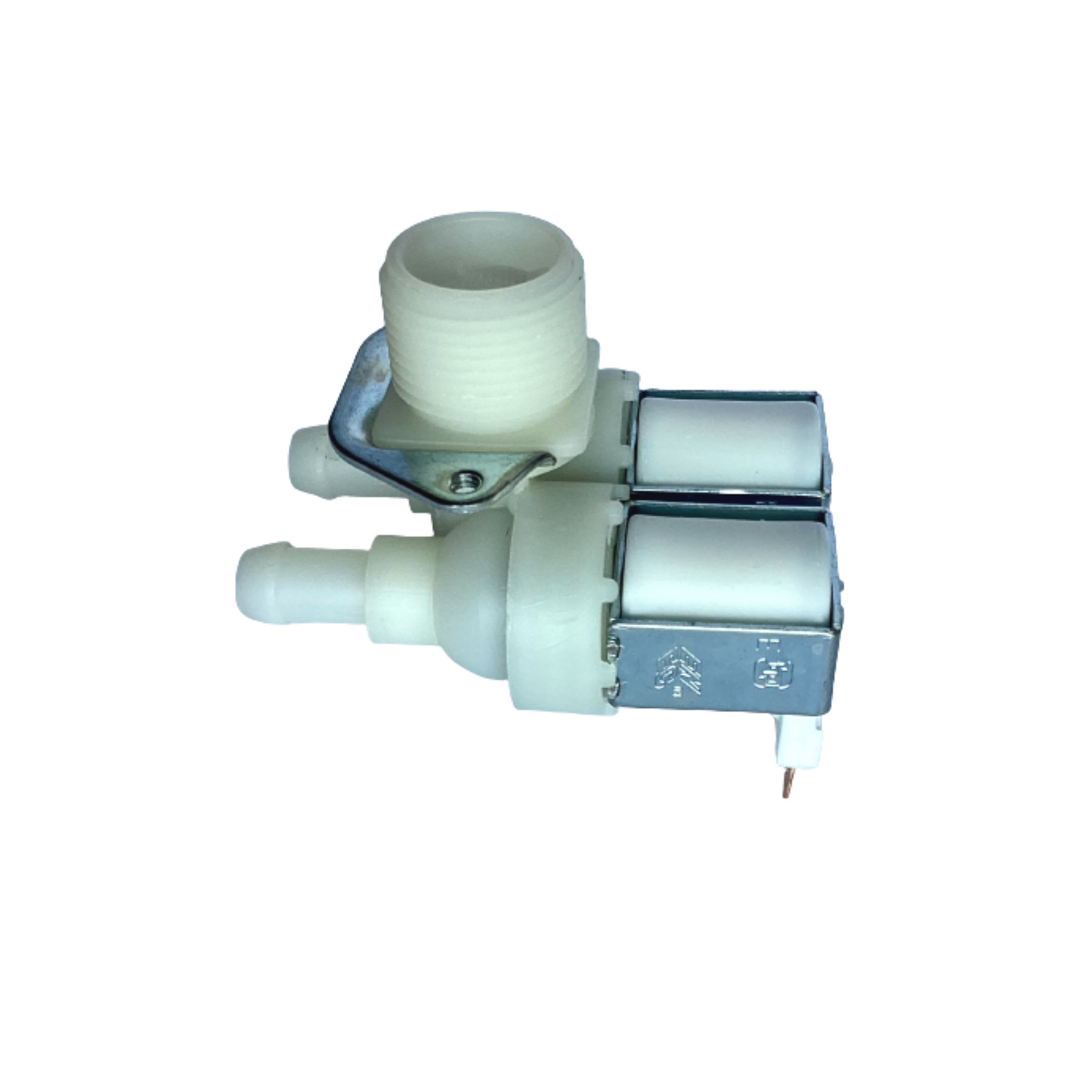

8581190308107 Simpson Washing Machine 90 Deg Dual Inlet Water Solenoid Valve Mix - W001A, 119030810

8581190308107 Simpson Washing Machine 90 Deg Dual Inlet Water Solenoid Valve Mix - W001A, 119030810

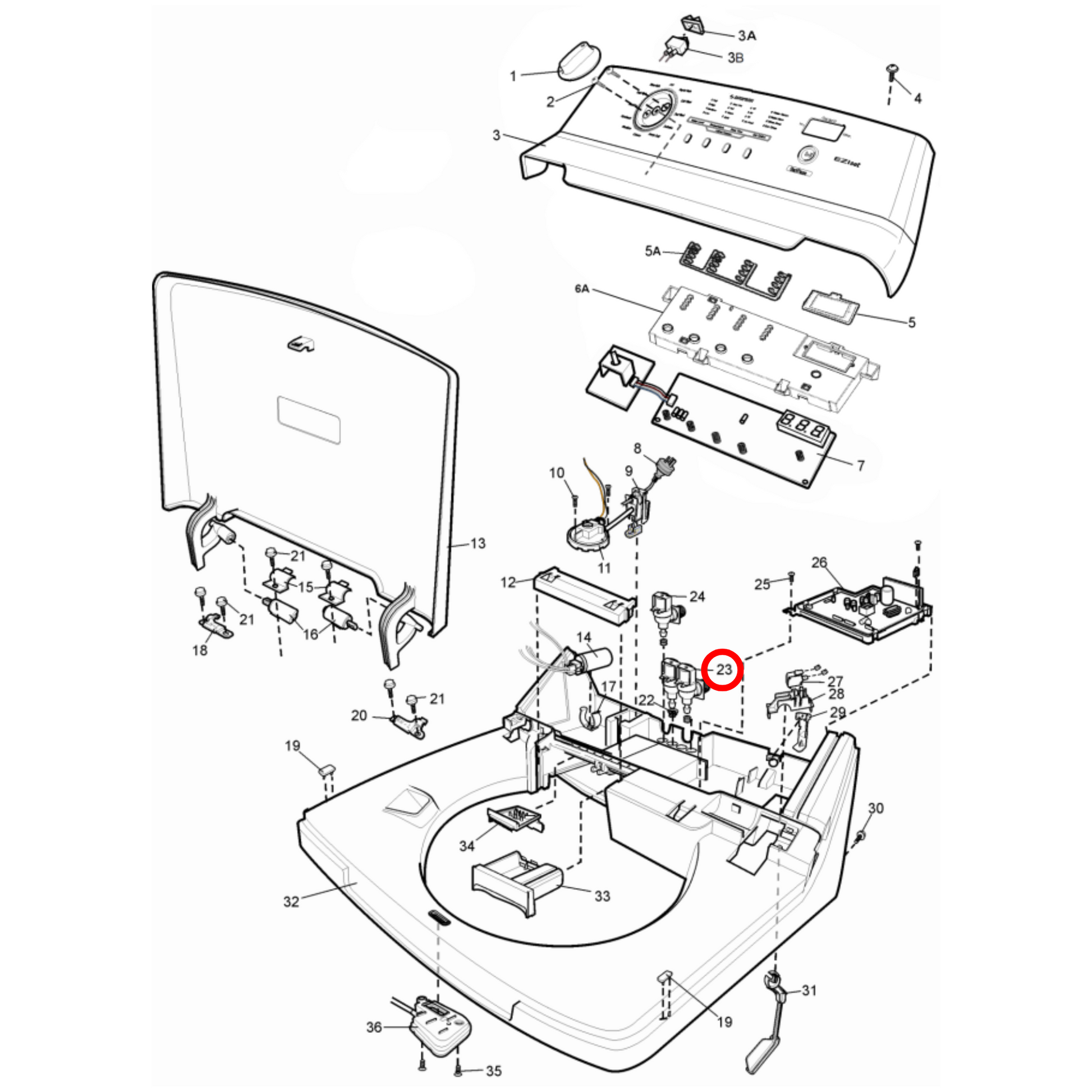

8581190308107 supersedes 119030810 and is number 23 on the diagram (2nd last photo). The diagram is from model

Part No. W001A, W001. Replaces genuine part numbers G530240 & G358495.

Equivalent to Part nos. WV024A, WV024B, GP003, 75866001, W103, DC62-00024F, 5220FR1251E, 119030810, 4055678868.

Outlets suit 10mm hose. Inlet is standard 3/4" BSP standard tap thread (actual thread diameter 1").

This solenoid valve is a suitable replacement for the dual valve used in some Pacific Gorenje front loading washing machines, Hoover Electra front loading washing machines and many others. Also suits some Samsung & LG models.

Flow rate 15litre/min. 240VAC solenoids.

Models this part suits:

SWT954, SWT801, SWT951, SWT954, SWT1012A, SWT7542, SWT8012, SWT8542, SWT8542A, SWT9542, WWT854, WWT8011, and many more. Contact us with the model number to confirm compatibility.

Give us a call on 0863907132 if you are not sure about this part.
