816291317 Smeg Oven Clock Timer - 816290347

816291317 Smeg Oven Clock Timer - 816290347

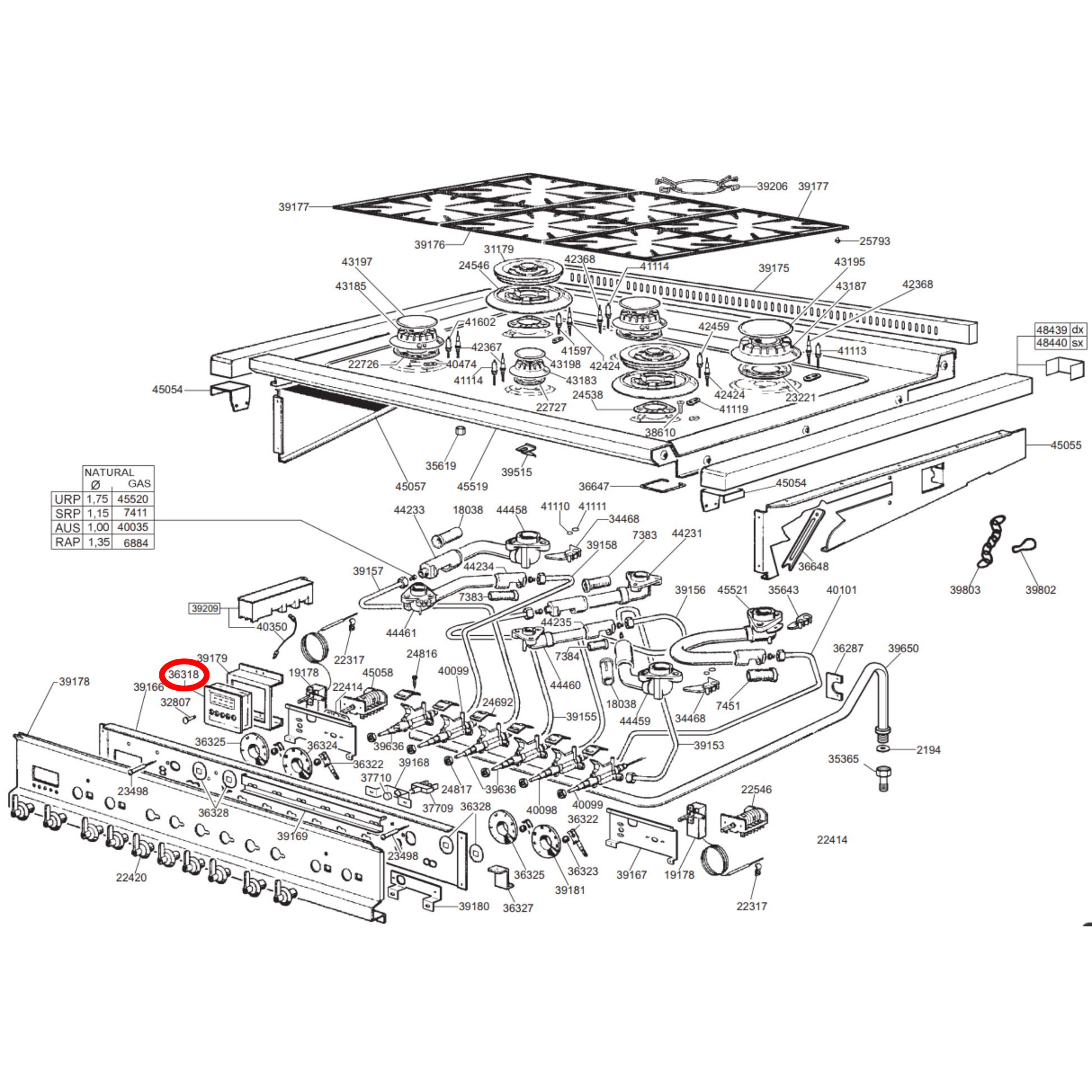

816291317 supersedes SE53, 816290347, 816290741, 816290735, 816292759, and is number 36318 on the diagram. The diagram is from model CSA20X.

5 button electronic clock timer module, oven programmer, (push buttons not included).

Models this part suits:

CSA20X, SA9066AS, SA9066CER, SA9066LPG, SA9066XNG, SA9066XS, SA9066V1, SA9066V2, CSA19/A/B, CSA19, CSA196, CSA196A, CSA196XLP, CSA19B, CSA19ID, CSA19XLP, B91GMXNL, B9481N3, B9GMANL, B9GMXNL, C113GMX, C113GMX9, C6CMX8, C6CMXA8, C6GMNNL8, C6GMX8, C6GMXA8, C6GMXD8, C6GMXNL8, C6GMXNLB8, C6IMX8, C6IMXI8-2, C6IMXI8, C7GMXA8, C7GMXNL8, C92GMNNL8, C92GMX8, C92GMXNL8, CC92MX8, CC92MX9, CG92N8, CG92N9, CG92RW9, CG92X8, CG92X9, CLDFRC-10, CLDFRC-9, CX61VMLS8, CX68CM8, CX68CMX8, CX68MSE8, DO41SS, DO4BL-5, DO4SS-5, DUCO4SS, DUSC54X, DUSF44X, FS61XNG8, GM93X8, GM93X9, HB933R500, HB933R51, HB933R52, JLRC904, JLRC905, JLRC906, JLRC907, JLRCBK105, JLRCSS104, OF601XZ, OF602XZ, SA20XMFR, SA20XMFR8, SA990XR-8, SA995XR-7, SA996XR-7, SCB60MX8, SCB60MX9, SCB92MN8, SCB92MRW8, SCB92MX8, SCD60IMX8, SCD60MX8, SCD60MX9, SCD68MX8, SDO10-5, SDO10-6, SE20XMFR7, SE20XMFR8, SE995XR-7, SE995XR-8, SE996XRK7, SF9310XR, SIL68MA8, SIL68MX8, SNL60MX8, SNL60MX9, SNL61MA8, SNL61MA9, SNL61MX8, SNL61MX9, SNL926MA8, SNL926MA9, SNL926MX8, SNL926MX9, SSA60MX8, SUK110, SUK61MBL8, SUK61MX8, SUK92CBL8, SUK92CBL9, SUK92CMX8, SUK92CMX9, SUK92MBL8, SUK92MBL9, SUK92MP8, SUK92MP9, SUK92MRW8, SUK92MX8, SUK92MX9, SUK92P9-1, SY4110-8, SY4110, SY4110BL, SY4110BL8, SY4110WH, SYD4110, TR4110AZ, TR4110BL, TR4110BL1, TR4110BLD, TR4110BLF, TR4110CNL, TR4110IP, TR4110NNL, TR4110P, TR4110P1, TR4110PF, TR4110RO, TR4110RW1, TR4110RWF, TR4110S1, TR4110SF, TR4110SNL, TR4110X, TR90BL, TR90BLD, TR90CNL, TR90NNL, TR90P, TR90PD, TR90X, TR93BL, TR93CNL, TR93IP, TR93NNL, TR93P, TR93X, TRA4110BL, TRA4110P, TRA90BL, TRA90P, TRA93BL, TRA93P, TRI90BL, TRI90P, XXSE20XMFR8.

This part has 2 relays and 6 spade terminals. Only one relay and 4 of the terminals are required on some of the above models.

If you are not sure about the suitability of this part, please contact us with your model number as there are several different clock timers which look very similar.

Give us a call on 0863907132 if you are not sure about this part.
