SG101_CS Oven Rotary Fan Motor 180MM Left Hand
SG101_CS Oven Rotary Fan Motor 180MM Left Hand
Regular price
$135.00 AUD
Regular price
Sale price
$135.00 AUD
Unit price
/
per

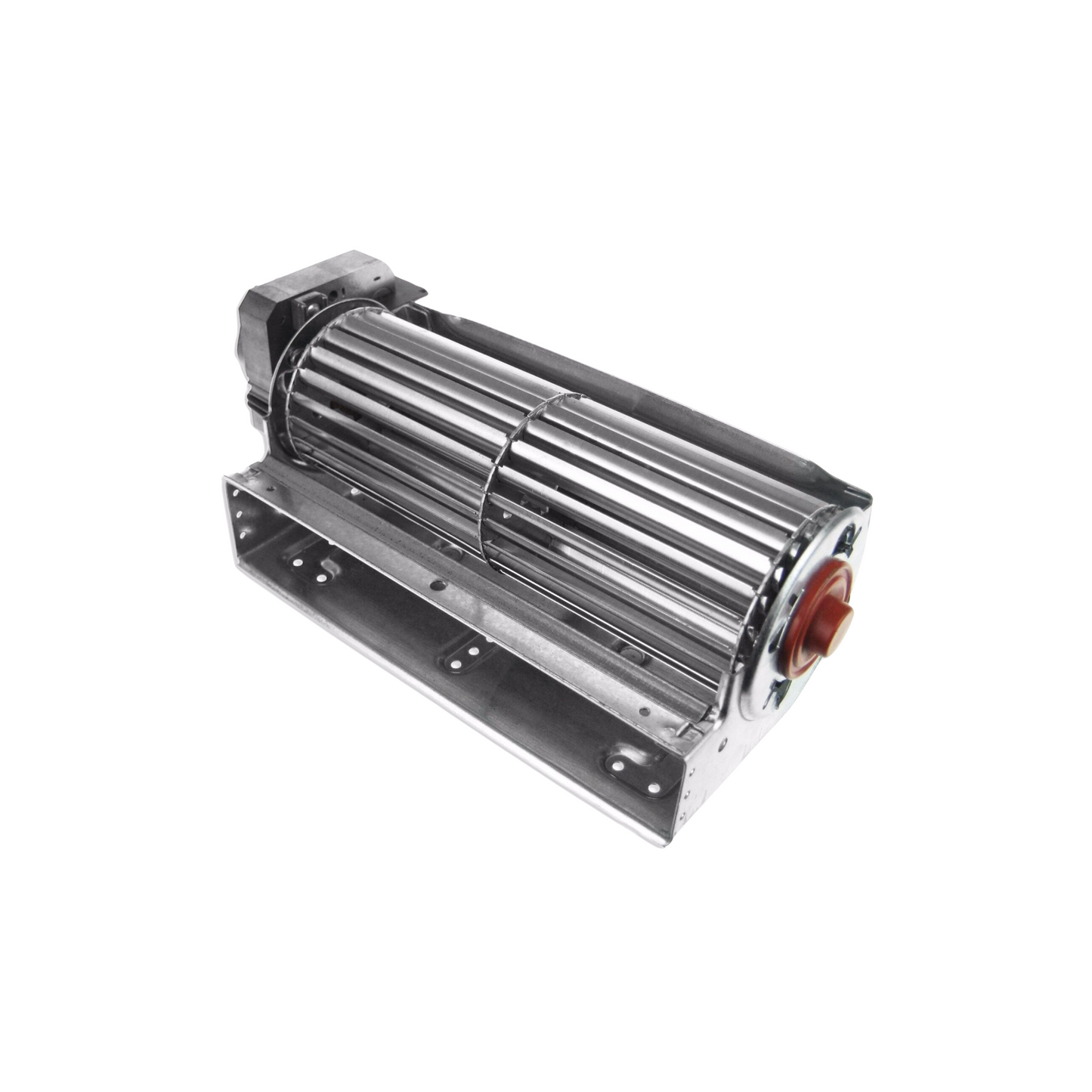

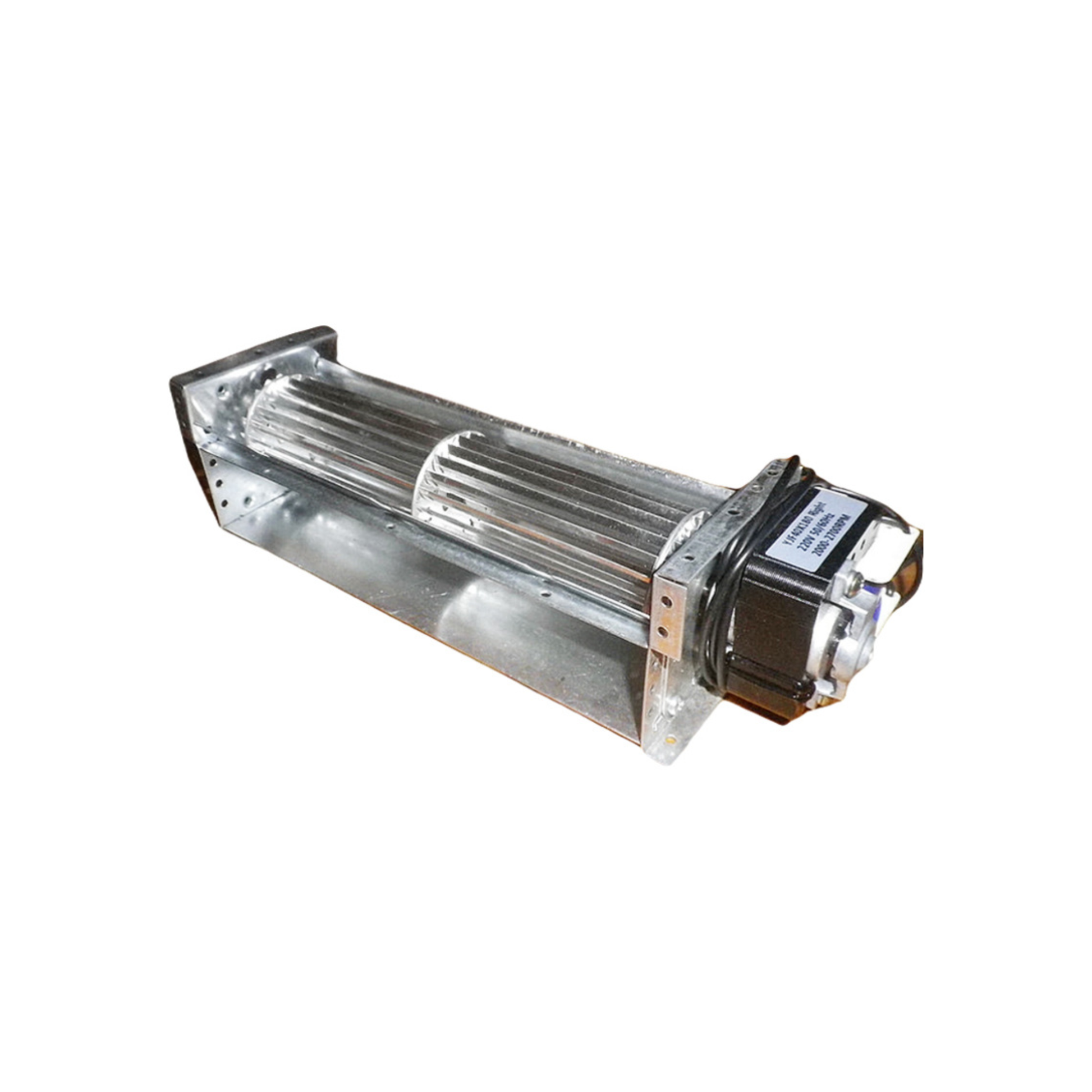

SG101_CS Oven Rotary Fan Motor 180MM Left Hand
240VAC, 500mm bare end fly leads for connection.
Top & bottom mounting holes 198mm apart end to end & 25mm + 15mm + 10mm apart front to back. Front mounting holes 198mm end to end and 10mm apart. Back mounting holes 198mm and to end and 50mm apart.
Drum dimensions: Length 180mm X Diameter 40mm. Drum housing 209mm x 69mm x 64mm. Overall length including motor 248mm.
Models this part suits:
This part suits some oven models from different brands. Contact us with the model number to confirm.
Give us a call on 0863907132 if you are not sure about this part.
