877730 Fisher & Paykel Fridge Fan Motor - RF905

877730 Fisher & Paykel Fridge Fan Motor - RF905

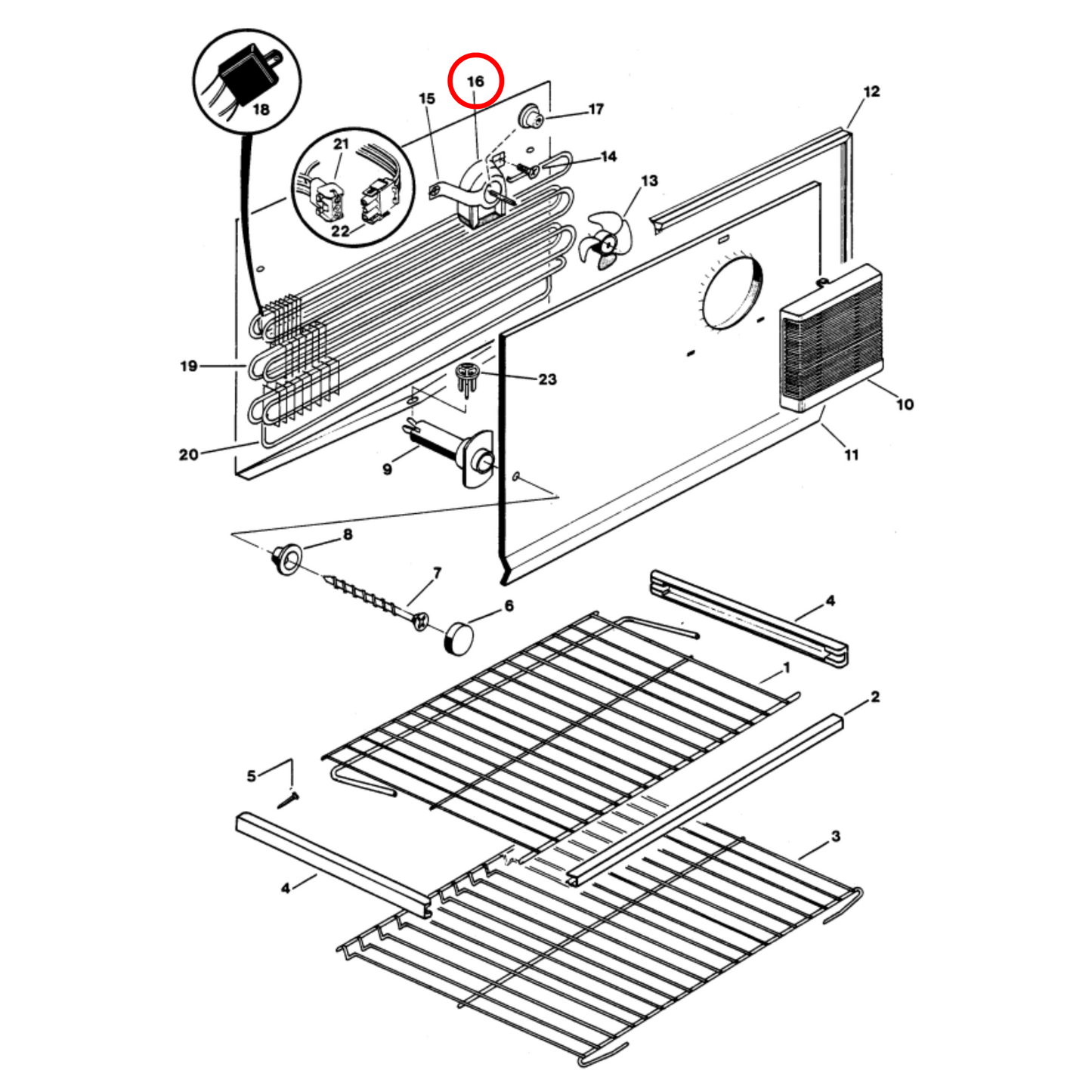

877730 is number 16 on the diagram (2nd last photo). The diagram is from model N369BR.

220Volts AC, 0.8Watt, 50Hz.

Fitted with 4.8mm male spade terminals.

Shaft length 34mm, shaft diameter 3mm, total depth 95mm from tip of shaft to back of mounting knob, thickness of motor from front to back, not including mounting knobs is 40mm

Models this part suits:

N308R, XR, N325TR, TFP, N369BR, N375TFP, TR, N395BR, N400HR, N405TFP, and possibly more.

Give us a call on 0863907132 if you are not sure about this part.
