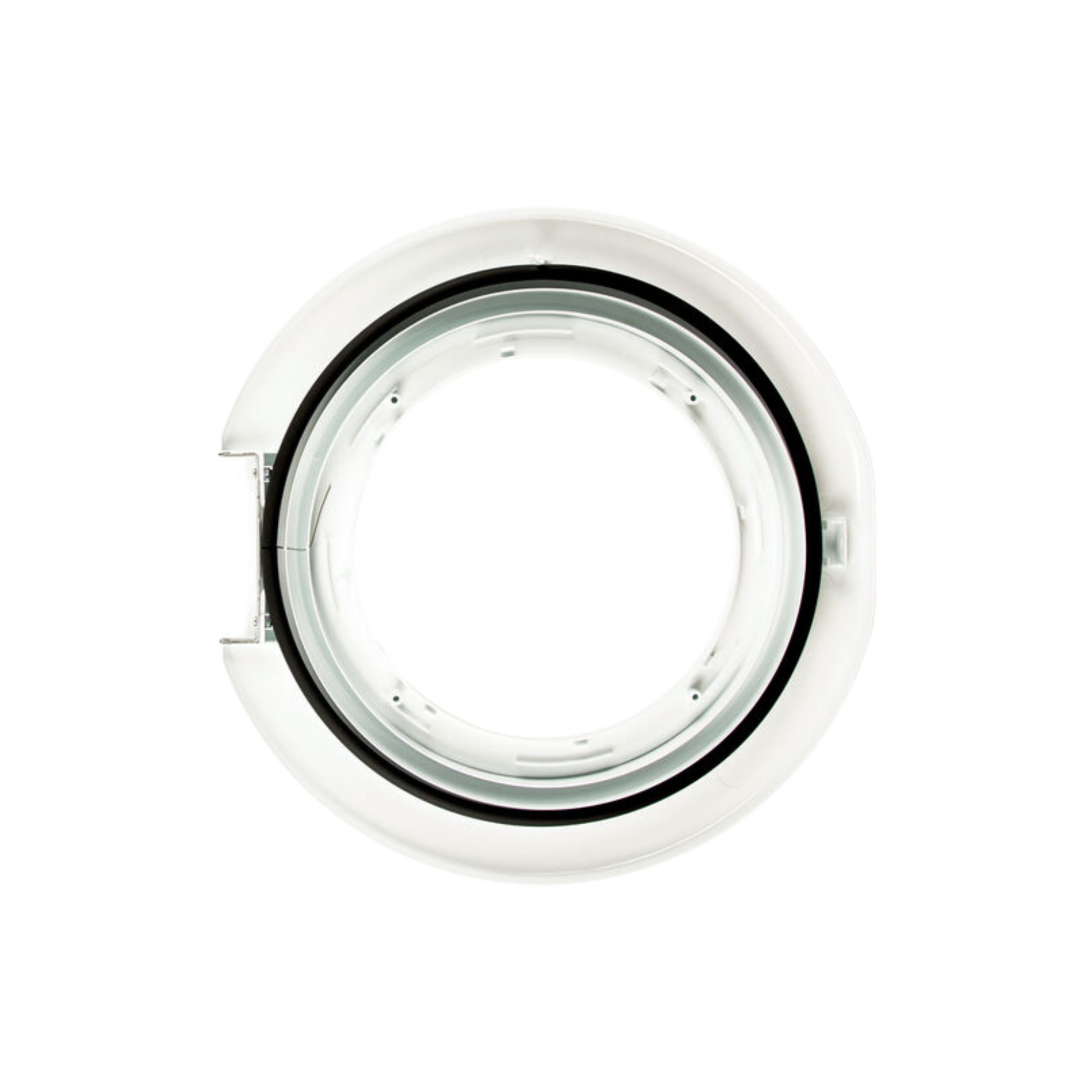

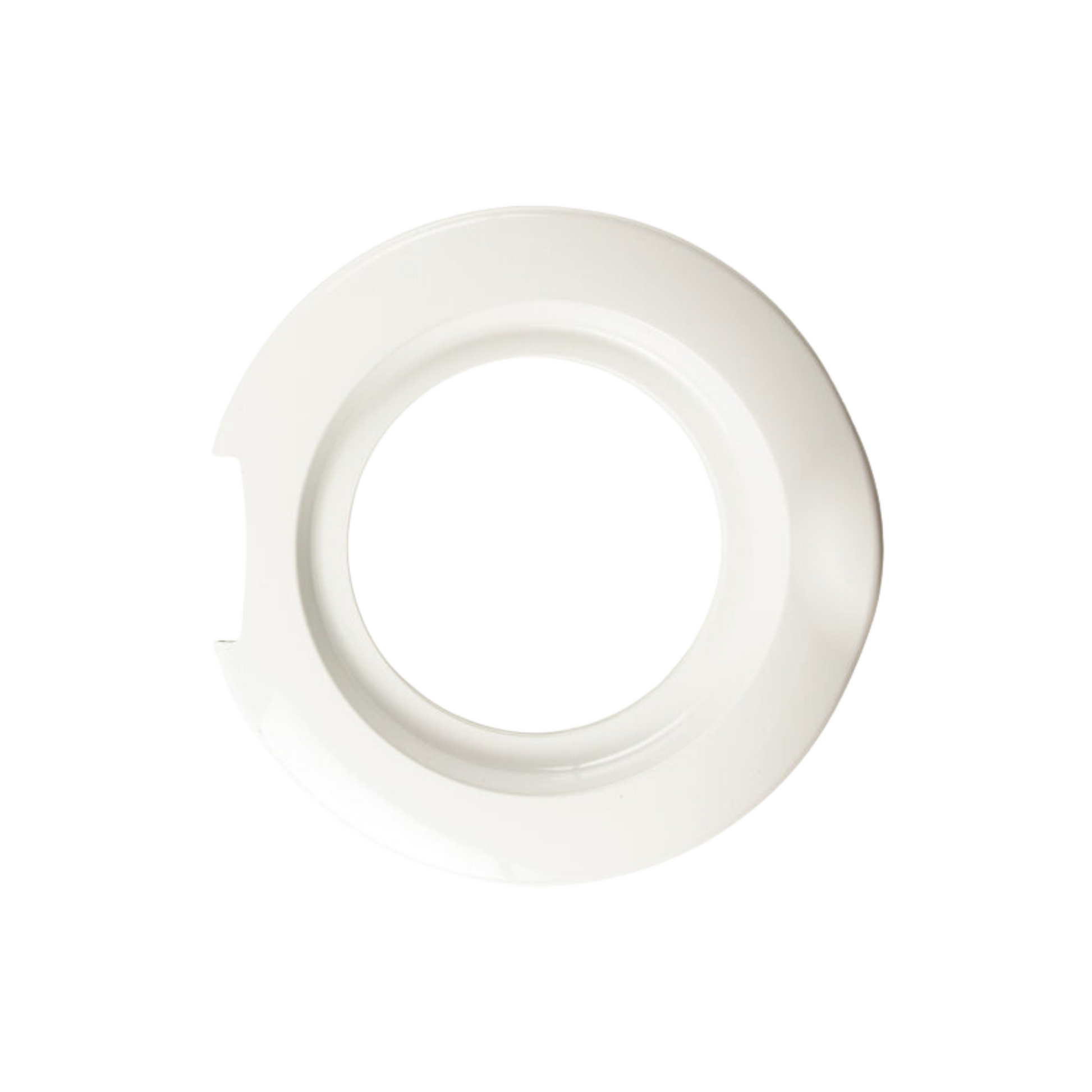

427420P Fisher & Paykel Dryer Door Front Frame Sub Assembly - 427078

427420P Fisher & Paykel Dryer Door Front Frame Sub Assembly - 427078

This part does not include the middle outlet grille.

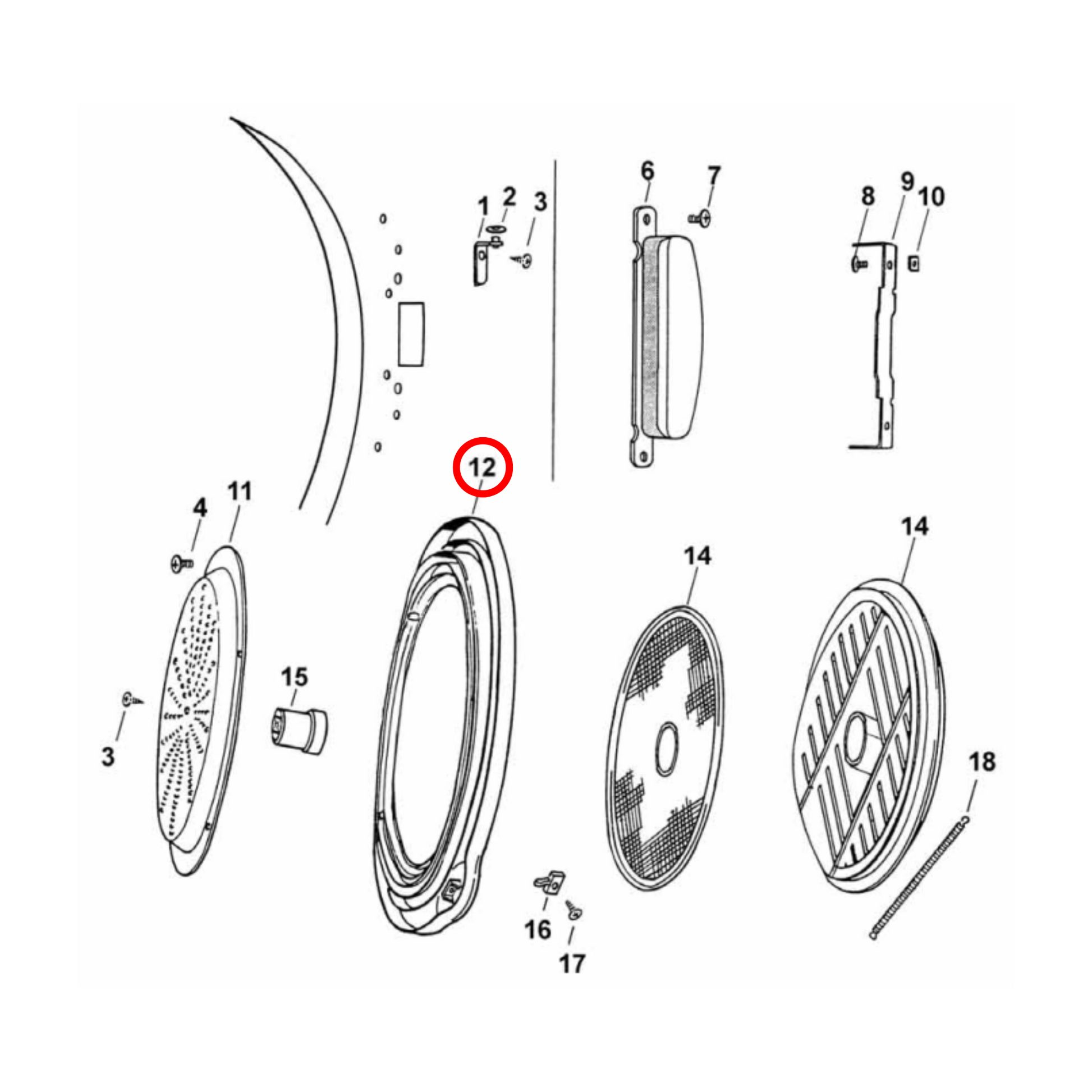

427420P supersedes 427078 and is number 12 on the diagram (2nd last photo). The diagram is from model DE35F56AW (93101-A).

For the Outlet Grille (number 14 on the diagram), go to 427199P.

For the Spigot (number 15 on the diagram), go to 427197.

Note: If wanting a door for an older model (typically over 10 years old) that has the door switch mounted under the hinge cover, the door switch kit will be needed and must be fitted by a qualified installer. See part no 427919 for door switch kit. Also when fitting the door to the older model dryer the breakaway plunger located on the inside top middle of the door will need to be removed.

Hint: Newer dryers have a small cut out in cabinet where the door closes. It is located in the top middle and corresponds to the plunger on the door. If your dryer does not have this cut out it is an older model.

This part suits many front venting dryers including:

ED50, ED52, ED53, ED54, AD35, AD35A, AD36, AD37, AD39, AD39 (93213-A), AD55, DE35F56AW1 (93007), DE40F56A2 (93188-A), and possibly more.

Give us a call on 0863907132 if you are not sure about this part.
