V-156-1C25 Micro Switch Rollar Arm

V-156-1C25 Micro Switch Rollar Arm

Omron Microswitch

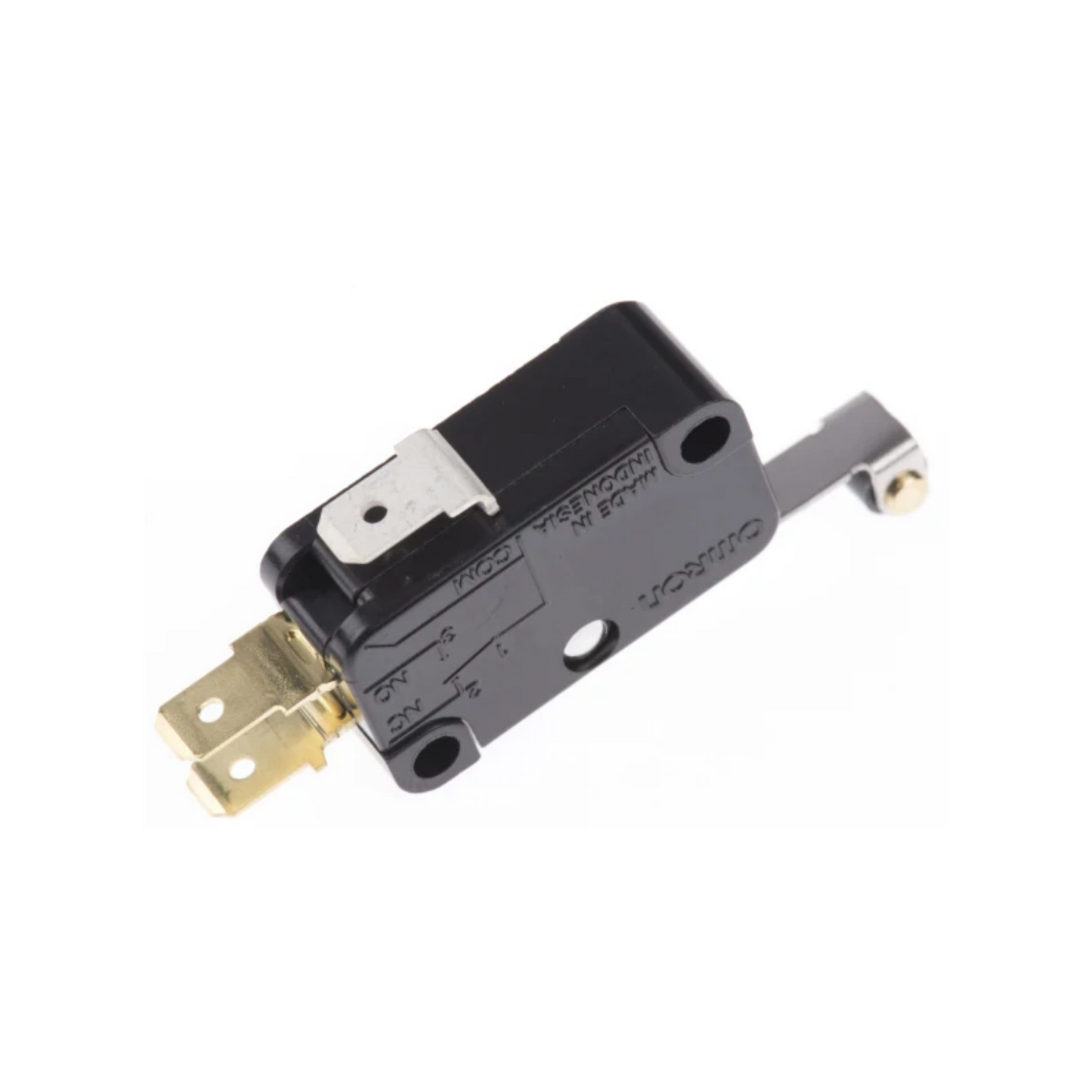

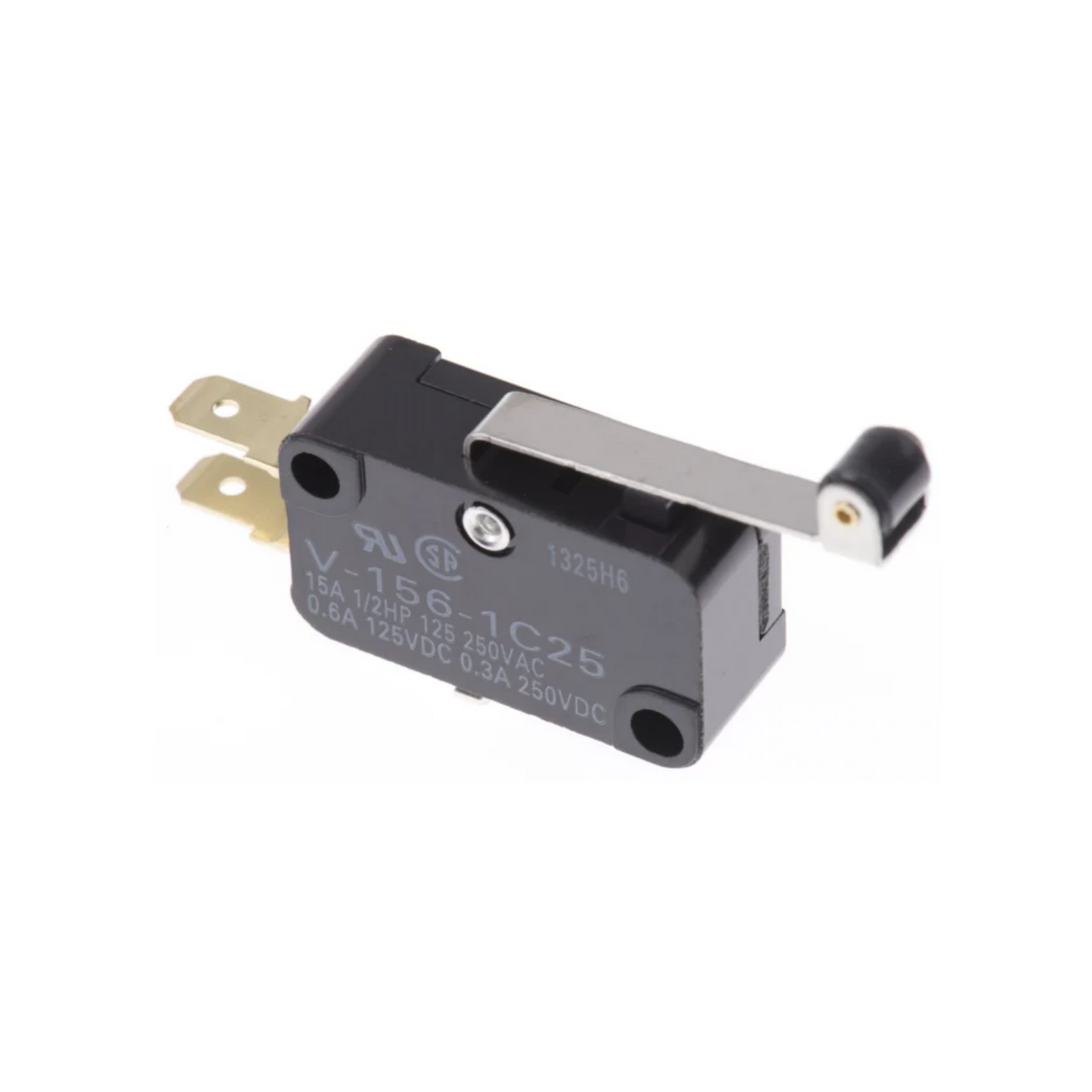

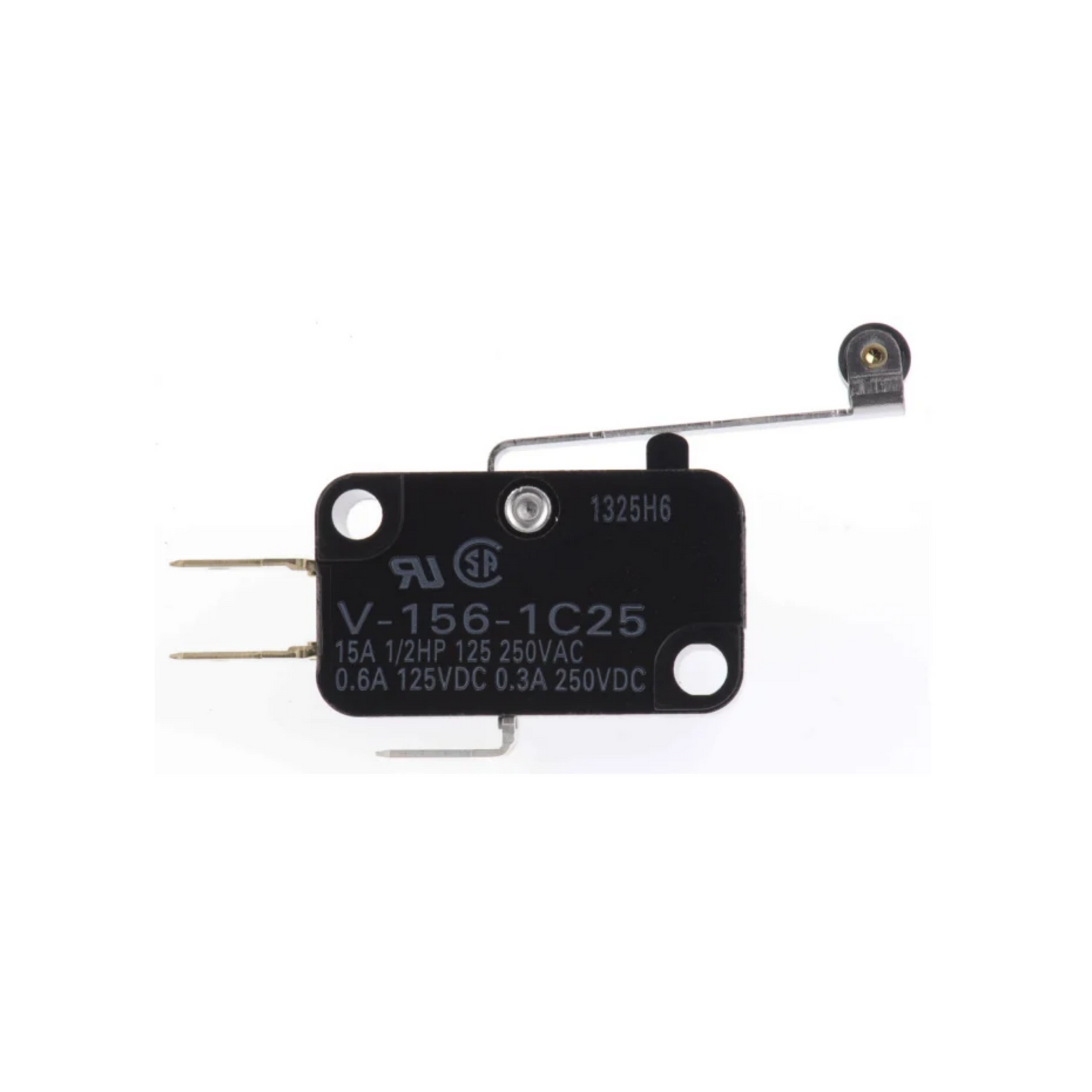

The Omron V16 series miniature microswitch has a hinge roller lever actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration microswitch has silver alloy contact material. It can be used for interrupting current when doors are opened or closed.

Features and Benefits

Operating force is 1.96 N
Mechanical life of 500000000 operations
Operating temperature is between -25°C and 80°C

Certifications

IP40 rated
