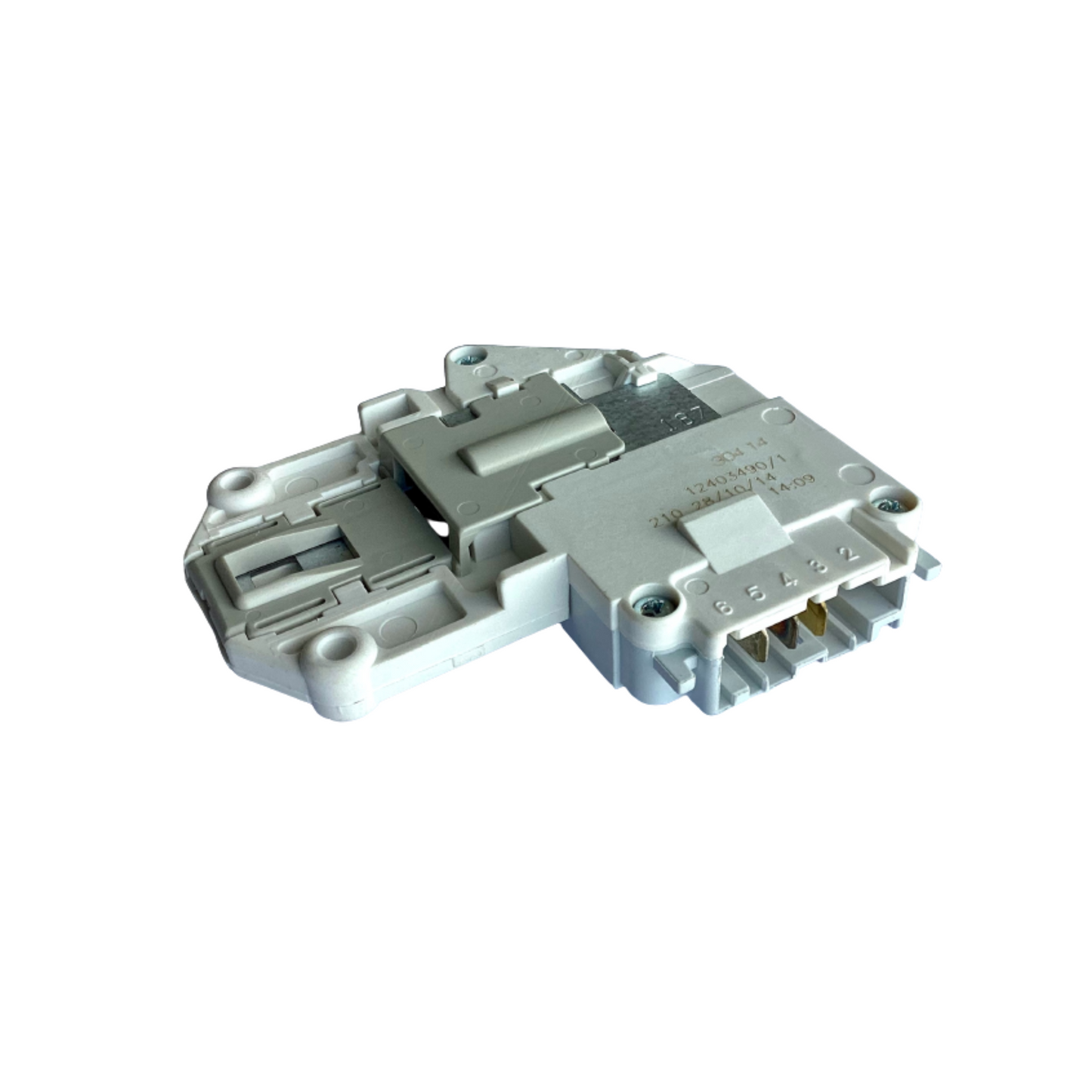

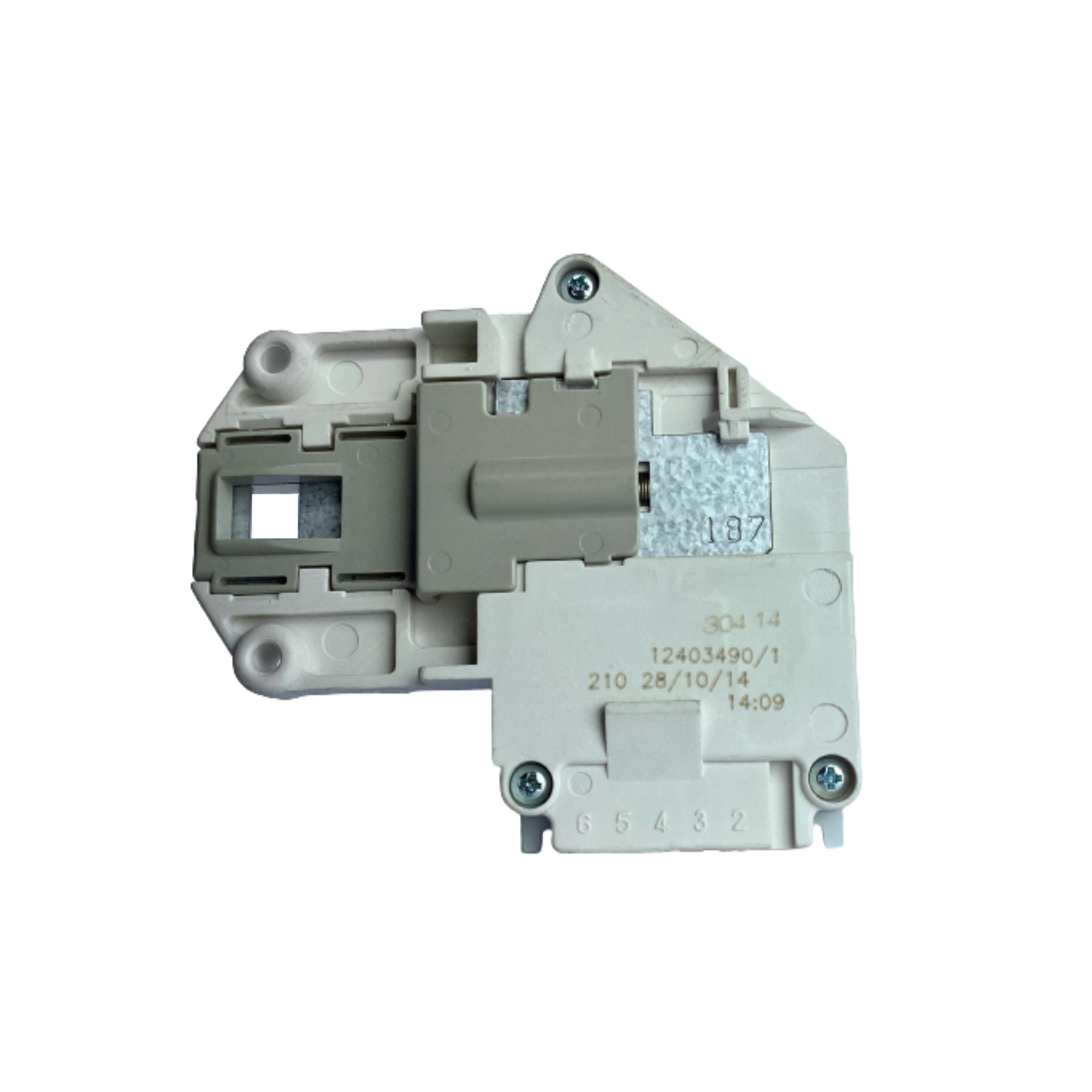

1240349-01/7 Simpson Washing Machine Door Lock

1240349-01/7 Simpson Washing Machine Door Lock

Genuine Part No. 1240349-01/7, 1240349017, 000001240349017, 12403490/1.

Replaces Part No. 50226735-00/4.

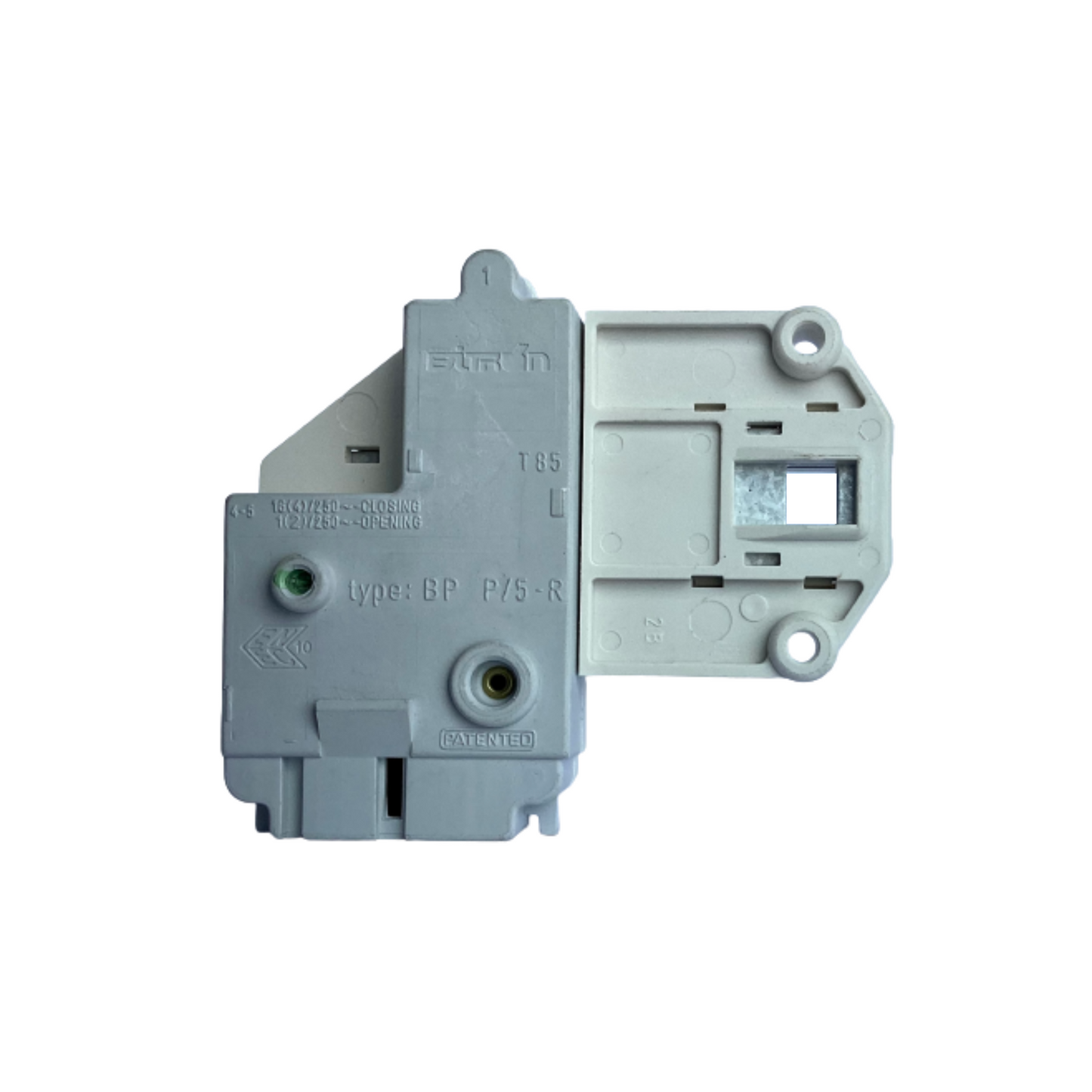

Manufactured by Eaton. Type BP P/5-R

This switch is appropriate for imported Simpson Front Load Models 45S508D, 45S558E (PNC # 91490007701), 45S710E (PNC # 91490007801) & Electrolux front loader models SWF1076, SWF10761 (PNC # 91490024200) & SWF8556, SWF85561 (PNC # 91490028900, 91490024201, 91490028901).

This part also fits imported Electrolux models EWS8010W, EWS10010W, EWS8000W, EWS8012W, EWS10012W, EWF10020W, EWC1050, EWC1350, EWF10240W, AEG Lavamat models W1255 (PNC # 91400266400), L50600 (PNC # 91452403200), LAV50600 (PNC # 914016357), LAVW1230-W (PNC # 91400220900), LAVW1255 (PNC # 914002664), LAVW830-W (PNC # 914002210, 91452403201) &  Zanussi models ZWD14581S, ZWO384, ZWO3104, FE802, FE1002,  ZWD381,  ZWD586,  ZWD5106,  ZWS382,  ZWS3102,  ZWS3122,  ZWO685,  ZWS687,  ZWS587,  ZWS5107,  ZWD685,  ZWD6105, ZWD585, ZWD5105.

When replacing this switch it is important to check the main control module for damage. A damaged control board can also cause damage to a newly fitted switch.

Give us a call on 0863907132 if you are not sure about this part.
