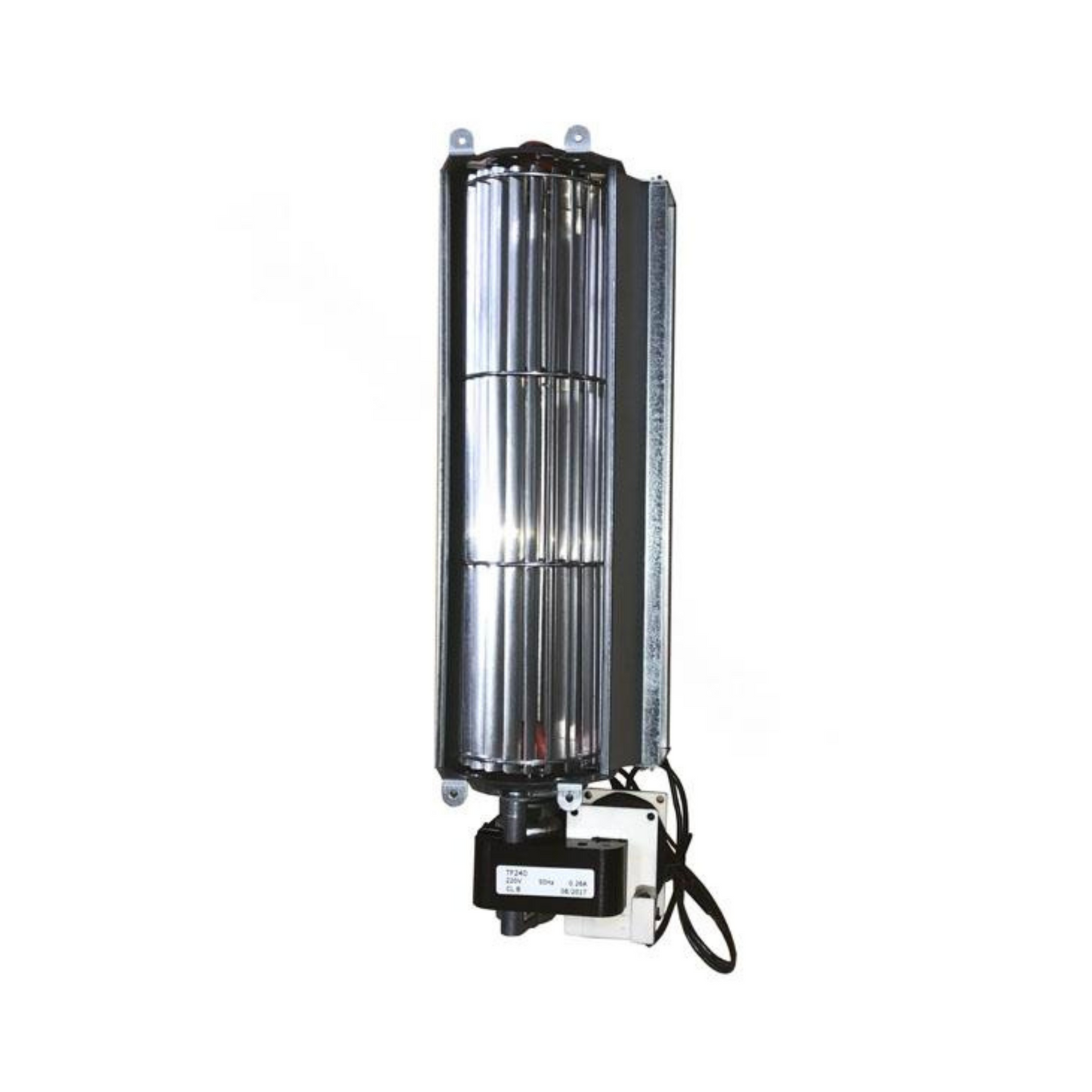

SG103 Oven Rotary Fan Motor 250MM Right Hand

SG103 Oven Rotary Fan Motor 250MM Right Hand

240VAC, 6.4mm spade terminal earthing, 450mm long fly leads for connection.

Four top mounting holes 250mm x 46mm apart & four bottom holes 255mm X 41mm apart. Other multiple holes on the bottom also for mounting with self tapping screws.

Drum dimensions: Length 245mm X Depth 94mm X Height 93mm. Overall length including motor 320mm.

The motor can be re-positioned so that the orientation is any of 4 directions.

Models this part suits:

This part suits some oven models from different brands. Contact us with the model number to confirm compatibility.

Give us a call on 0863907132 if you are not sure about this part.
