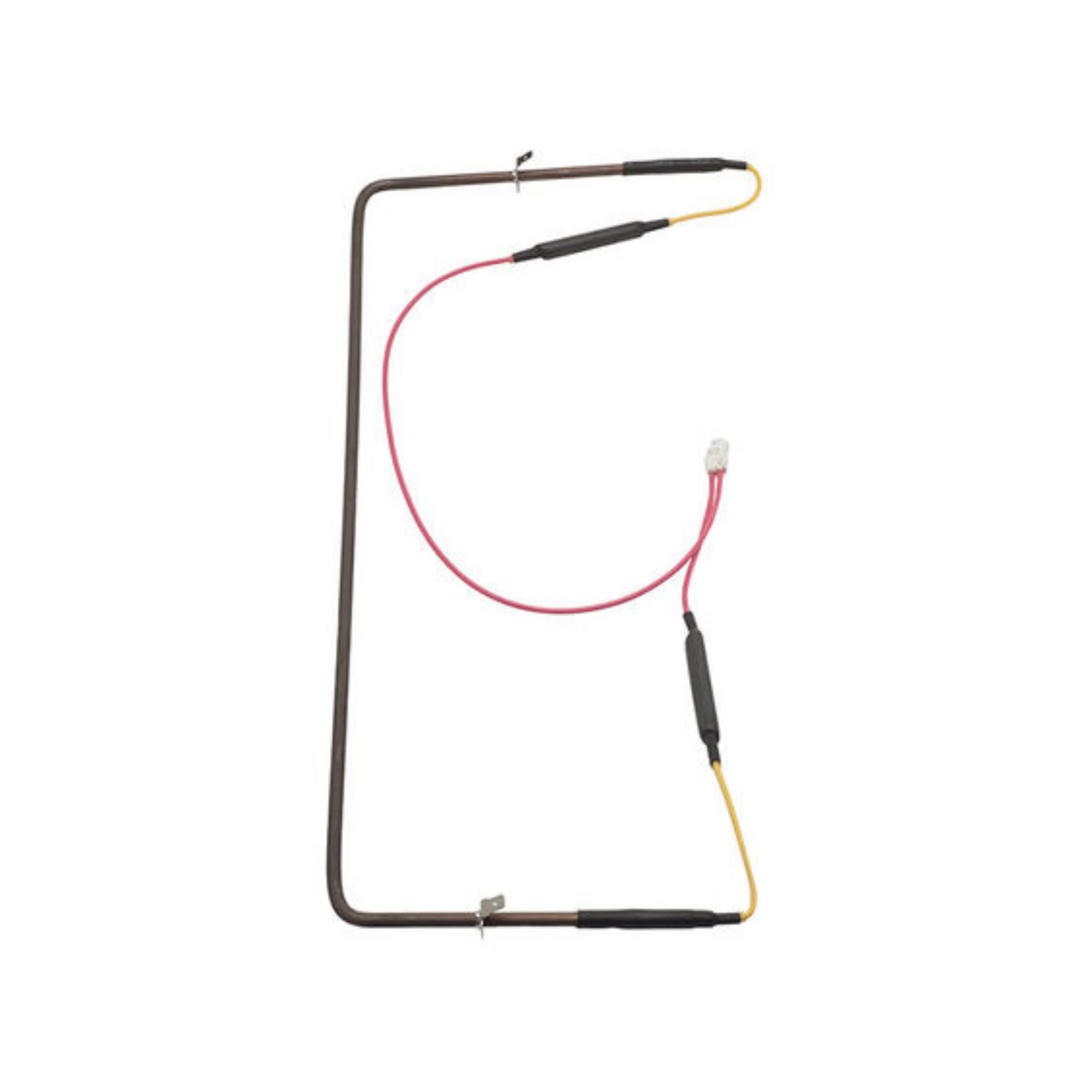

847020 Fisher & Paykel Fridge Defrost Heater With Fuse - 818755, 820671

847020 Fisher & Paykel Fridge Defrost Heater With Fuse - 818755, 820671

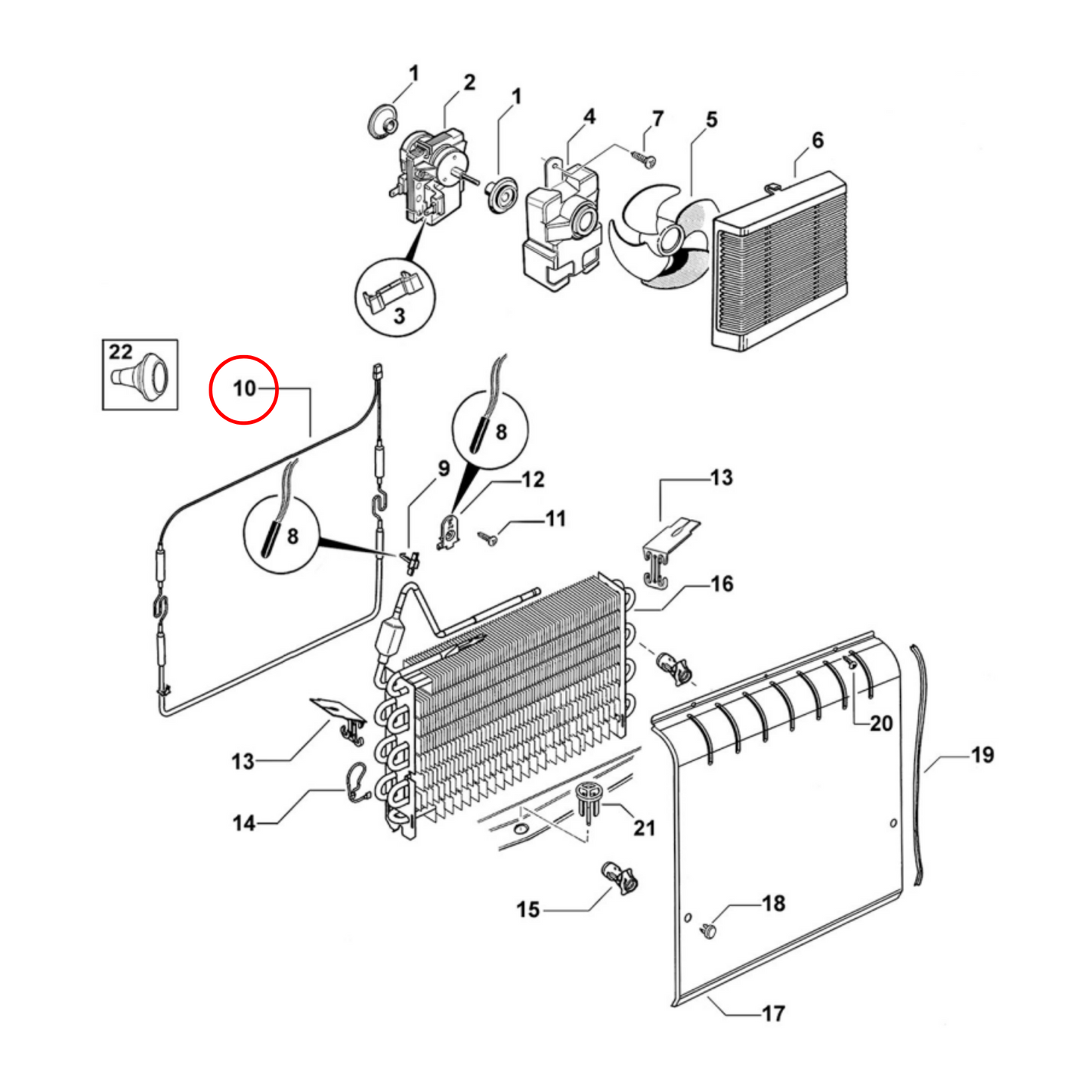

847020 supersedes 818755, 820671 and is number 10 on the diagram (2nd last photo). The diagram is from model E388LW1 (24868-A)

For the after-market version, go to RF202

Specifications: 95W, 240V AC, 116 Ohms

Size: 200mm & 160mm bent up end, 490mm wide

Models this part suits:

E388LW1 (24868-A), E308L (22010-A), E308L (23954-A), E308R (22009-A), E308R (23953-A), E388L (22017-A), E388L (23961-A), E388LMFD (22019-B), E388LMFD (22019-C), E388LMFD (22021-B), E388LMFD (22021-C), E388LMFD (22021-D), E388LXFD (22019-A), E388R (23964-A), E388RMFD (22018-B), E388RMFD (22018-C), E388RMFD (22020-B), E388RMFD (22020-C), E388RMFD (22020-D), and possibly more.

Give us a call on 0863907132 if you are not sure about this part.
