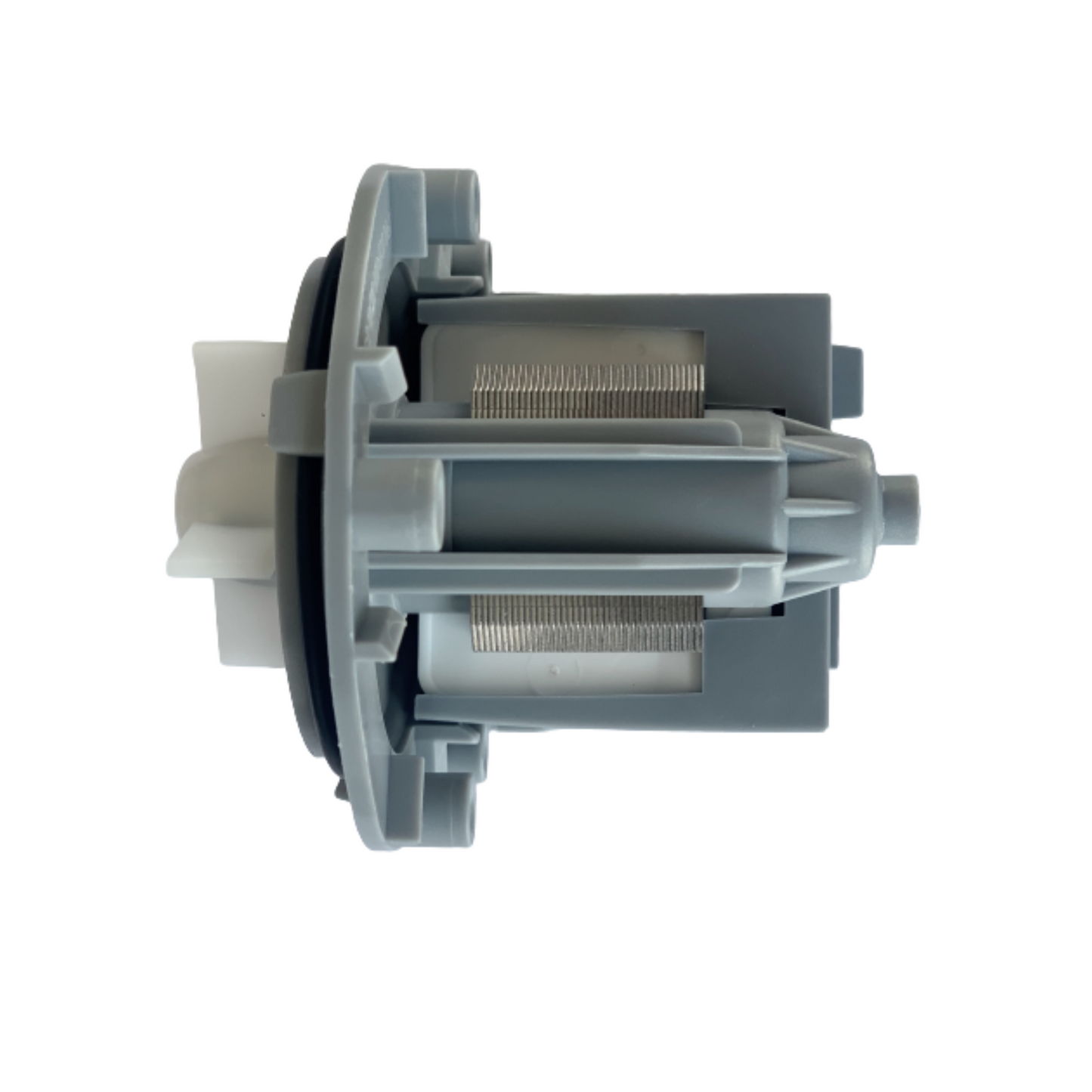

EAU61383505 LG Front Load Washing Machine Drain Pump - BO112

EAU61383505 LG Front Load Washing Machine Drain Pump - BO112

Equivalent to Part Nos. EAU61383505, LGF037S, 1030239WS.

Similar to part numbers 4681EA2002F, 4681EA2001B by Hanning & 4681EA2001A by Plaset except the contacts are at the front of the pump instead of the back.

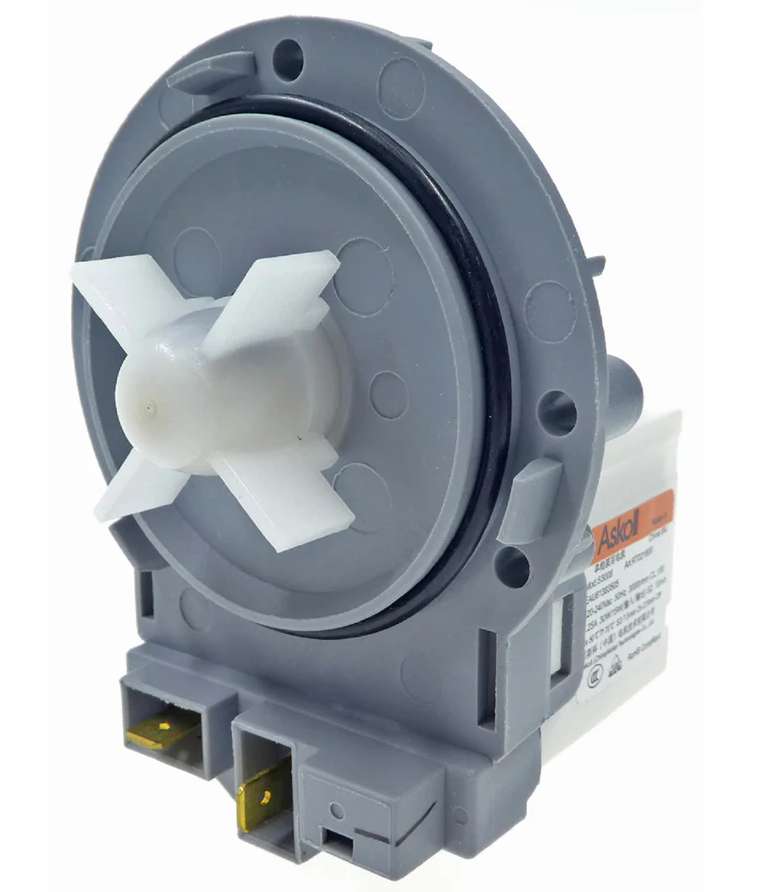

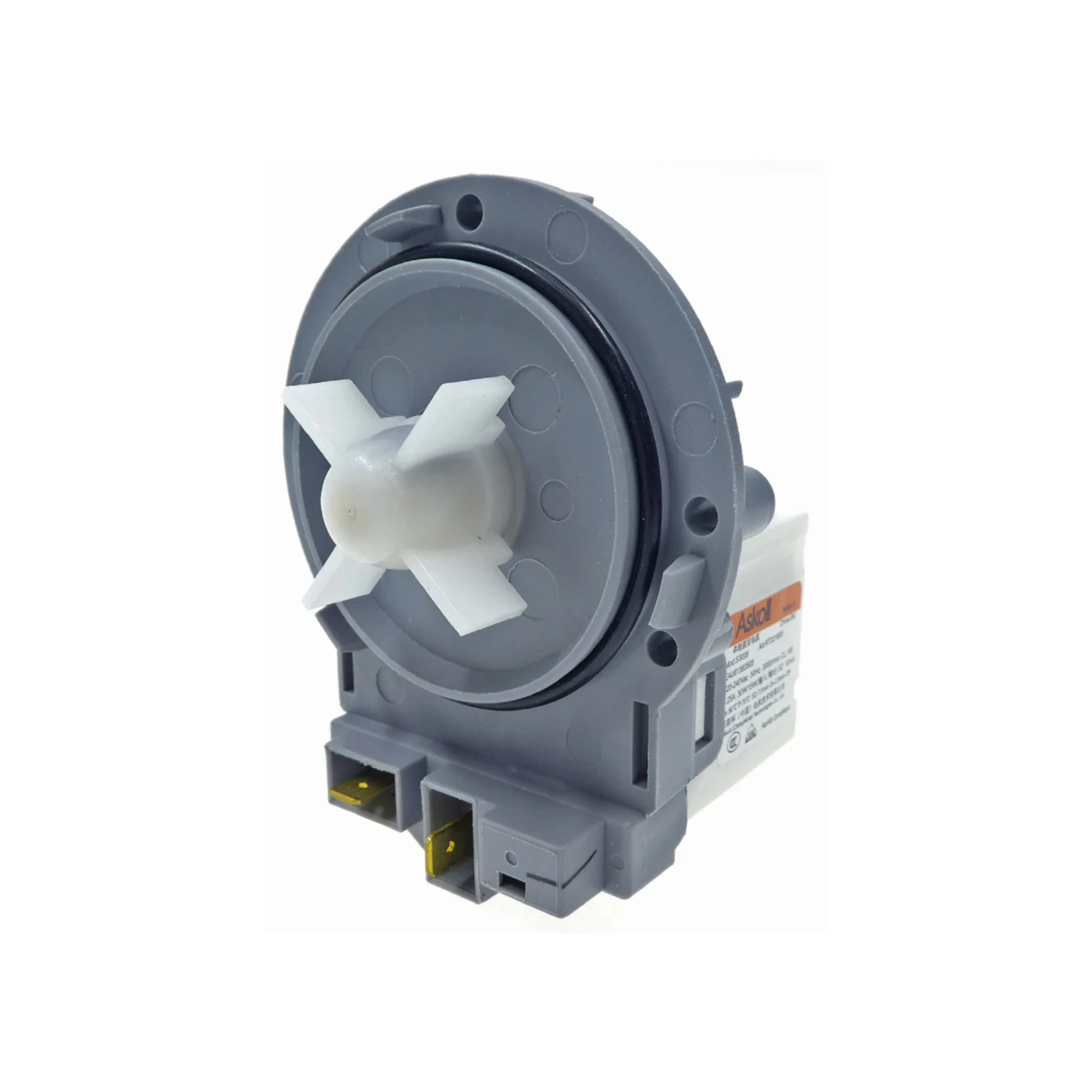

Askoll Mod. M253, Art. RS0666, Cod. RS0664.

Similar to Hanning Code # DP025-208, Plaset Code # 63096 & 70468.

Interchangeable in fit with Part nos. UNI087, DFL020, UNI088, UNI087H, PMP88.

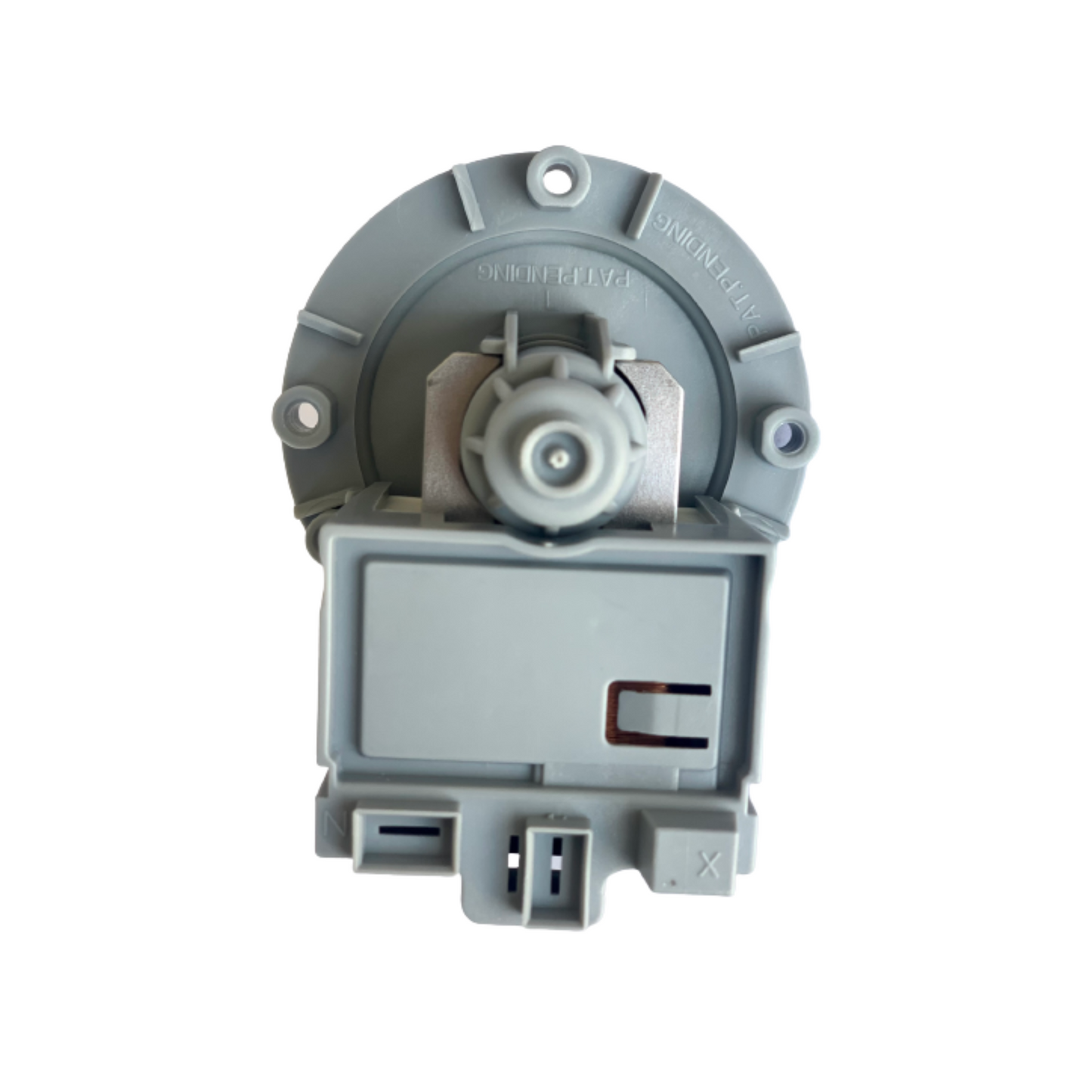

220/240VAC, 0.2A, 50Hz, 25Watt, 6.4mm terminals. Terminals are located at the front of the motor.

This part fits many 240 volt LG washing machines / dryer combo machines where the motor body attaches to the cover by screws from the rear of the pump. 5 mounting holes.

This part can be used in many other brands such as Samsung, Asko, Bosch, Whirlpool, Philips, NEC, Midea, Daewoo, Kleenmaid and any others where the pump attaches to the pump housing with three screws from the rear.

Models this part suits:

WD1207NCW (F2J6QNP0W.ABWREAP), WD1208TC4W (F2J6GNP1W.ABWREAP), WD14023D6 (F14A8TD.ABWREAP), WD14024D6 (F14A8GD.ABWREAP), WD1402CRD6 (F1496AD3.ABWREAP), WD14030D6 (F1480FD.ABWREAP), WD14030D (F1403FD3.ABWREAP), WD14030D (F1403FD.ABWREAP), WD14030FD6 (F1480RDS.ABWREAP), WD14030FD (F1403RDS3.ABWREAP), WD14030FD (F1403RDS.ABWREAP), WD14030RD6 (F1480RD.ABWREAP), WD14030RD (F1403RD3.ABWREAP), WD14030RD (F1403RD.ABWREAP), WD14039D6 (F1480FD9.ACRREAP), WD14039D (F1403FD39.ACRREAP), WD14039D (F1403FD9.ACRREAP), WD14060D6 (F1443KD.ABWREAP), WD14060SD6 (F1443KDS7.ASSREAP), WD14060SD6 (WD14060SD6), WD14070D6 (F1495KD.ABWREAP), WD14070SD6 (F1495KDS7.AESREAP), WD14071SD6 (F1495KDS.ABWREAP), WD14075D6 (F1495KDS7.AESREAP), WD1408NCW (F4J8GNP2W.ABWREAP), WD1408NPW (FH4A8GDNK2.ABWREAP), F1069FD2 (F1069FD2.ABWREAP), F1069FD3 (F1069FD3.ABWREAP), F1069FD4 (F1069FD4.ABWREAP), F1069FD (F1069FD.ABWREAP), F1495BD (F1495BD.ABWQEDG), F14A8FD (F14A8FD.ABWQESW), F14A8RDS (F14A8RDS.ABWQESW), F14A8TDS (F14A8TDS.ABWQESW), WD1409HPW (FH4A8FDHK2N.ABWREAP), WD1409NCE (F4J8FNP2S.AESREAP), WD1409NCW (F4J8FNP2W.ABWREAP), WD1409NPE (FH4A8FDNK6.AESREAP), WD1409NPW (FH4A8FDNK2.ABWREAP), WD1410SBW (FH495KDSK2.ABWREAP), WD1411SBW (FH4K9KDSK2.ABWREAP), WD14130D6 (F14A8FD.ABWREAP), WD14130FD6 (F14A8RDS.ABWREAP), WD14130RD6 (F14A8RD.ABWREAP), WD14135D6 (F14A8FD7.AESREAP), WD-14313RD (WD-14313RD.AOWREAP), WD-1457RD (WD-14570RD.ATWREAP), WD-1470FD (WD-14220FD.AOWREAP), WD14750SD (WD-14440TDS.AOWREAP), WD14756SD (WD-14446TDS.ABPREAP), WD1475NCW (F4J6QNP1W.ABWREAP), WD14800RD (WD-14312RDK.AOWREAP), WD-1481RD (WD-14313RD.AOWREAP), WD-1485RD (WD-14314RD.AOWREAP), WD-1488RD (WD-14312RD.AOWREAP), WD-1488RD (WD-14312RD.AOWRRAN), WDC1475NCW (F4J6QMP1W.ABWREAP), WD-F14427D (F14A8FD7.AESPEPN), and possibly more.

Give us a call on 0863907132 if you are not sure about this part.
