What is an ignition box and how it functions in a stove or cooktop?

What is an ignition box and how it functions in a stove or cooktop?

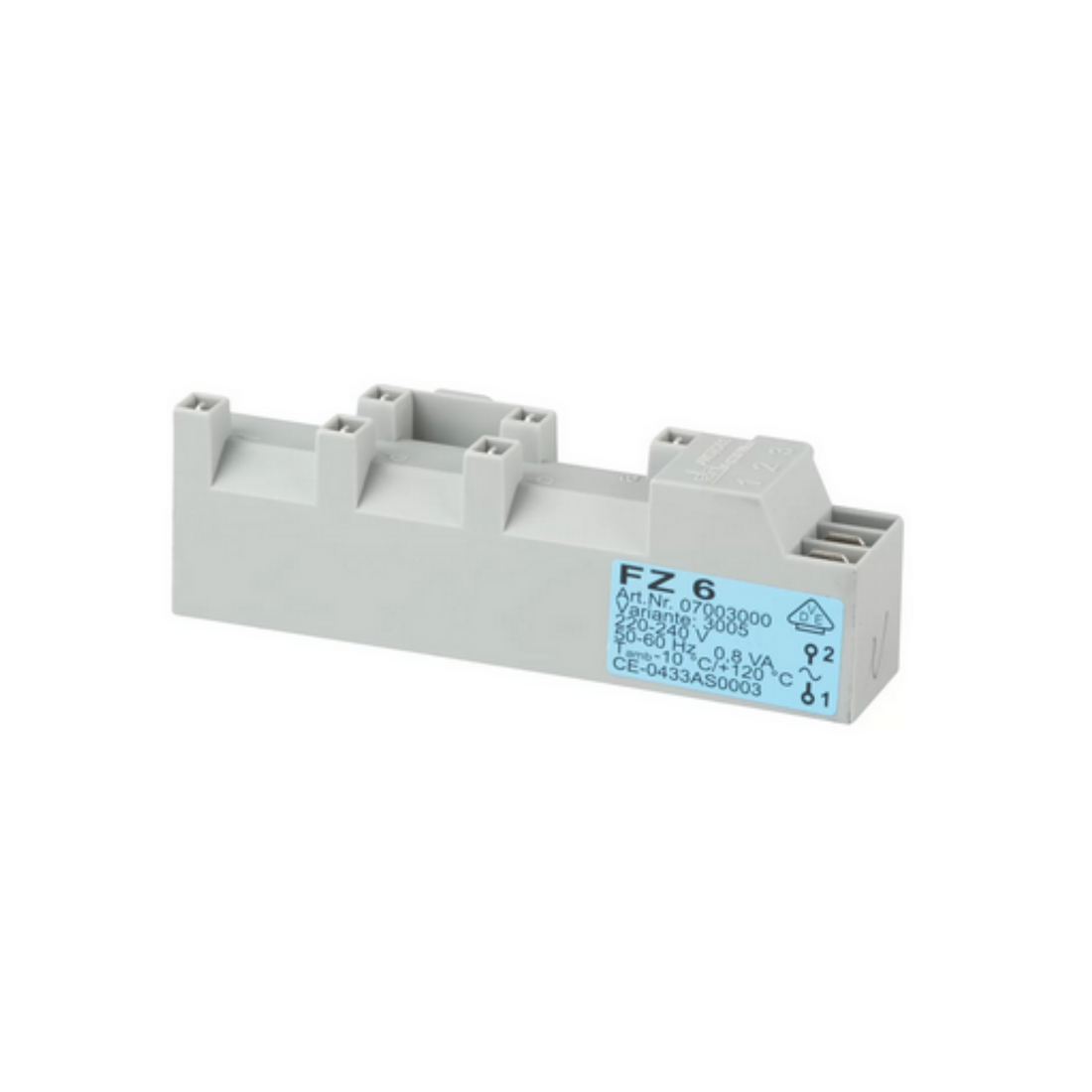

The ignition box, sometimes referred to as the spark module or ignition module, plays a key role in initiating the spark that ignites the gas when you turn on a burner. (The part in the photo used for this post is 00604406

Here's how the ignition box functions in a gas cooktop:

  1. Ignition Spark Generation: When you turn the knob to ignite a burner, the ignition box receives an electrical signal from the control knob. In response, the ignition box produces a high-voltage spark.

  2. Spark Electrode Activation: The spark generated by the ignition box travels through a wire to the spark electrode located near the burner. The spark electrode is positioned close to the gas port.

  3. Gas Ignition: The spark ignites the gas coming out of the burner, creating a flame.

  4. Flame Detection: Many cooktops have a flame detection system that monitors whether the gas has ignited successfully. If the flame is detected, the ignition system stops sparking, and the gas flow continues to maintain the flame.

The purpose of the ignition box is to ensure a reliable and safe ignition process for each burner on the cooktop. If you're experiencing issues with the ignition, such as difficulty lighting the burners or a continuous sparking sound even after the flame is established, the ignition box or related components may need to be inspected and, if necessary, replaced.
